A properly functioning carburetor is essential for reliable Honda ATV performance. Over time, old fuel, dirt, and varnish buildup cause poor starting, rough idling, and power loss. Rebuilding your carburetor restores performance and saves hundreds compared to professional service. This comprehensive guide walks you through the complete rebuild process for Honda TRX, Rancher, Foreman, and Recon models.
WHEN TO REBUILD YOUR CARBURETOR
Common Symptoms:
- Hard starting or won't start
- Rough or inconsistent idle
- Poor throttle response
- Black smoke from exhaust (running rich)
- Backfiring or popping
- Fuel leaking from carburetor
- Loss of power or bogging
- Won't run without choke
Rebuild Interval: Every 2–3 years or whenever symptoms appear, especially after sitting with old fuel.
BEFORE YOU BEGIN
Difficulty Level: Moderate
Time Required: 2–4 hours
Skill Level: Intermediate mechanical skills
Tools Needed:
- Socket set (8mm, 10mm, 12mm)
- Screwdrivers (flathead and Phillips)
- Needle-nose pliers
- Carburetor cleaner spray
- Compressed air
- Small wire or jet cleaning tool
- Parts tray or egg carton
- Phone or camera for reference photos
- Clean rags or shop towels
Supplies:
- Model-specific carburetor rebuild kit
- Carburetor cleaner
- Fresh gasoline
- Fuel line (if old or cracked)
- Zip ties
Safety:
- Work in a well-ventilated area
- Wear safety glasses
- Keep a fire extinguisher nearby
- No smoking or open flames
STEP 1: PREPARATION AND REMOVAL
1. Take Reference Photos
Photograph fuel line routing, throttle cable, choke cable, vacuum lines, and carb orientation.
2. Shut Off Fuel
Turn petcock OFF or clamp fuel line.
3. Remove Carburetor
Disconnect throttle cable, choke cable, air box boot, fuel line, vent hoses, and mounting bolts. Remove carburetor carefully.
4. Drain Fuel
Remove float bowl drain screw and drain into approved container.
STEP 2: DISASSEMBLY
1. Remove Float Bowl
Remove the four screws and separate bowl from carb body.
2. Remove Float and Needle
Remove float pin, float, and needle valve. Inspect needle tip.
3. Remove Jets
Remove main jet and pilot jet. Note jet sizes.

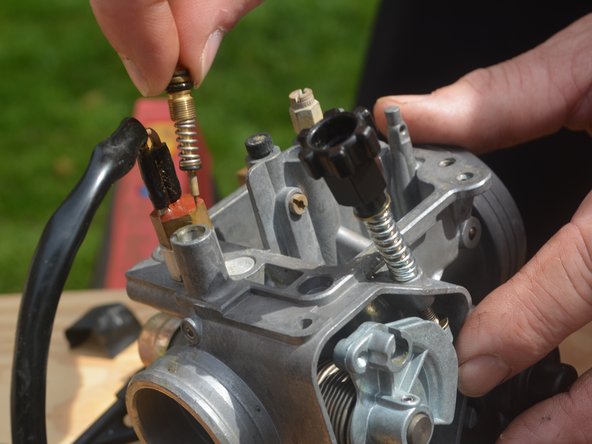

4. Remove Other Components
Remove idle mixture screw (count turns first), throttle slide, needle, choke plunger, and any other removable parts.
STEP 3: CLEANING
1. Soak Components
Soak metal parts in carb cleaner for 30–60 minutes. Do not soak rubber or plastic.
2. Clean Passages
Spray all passages with carb cleaner and blow out with compressed air.
3. Clean Jets
Spray and blow out jets. Ensure all holes are clear.
4. Inspect Float Bowl
Remove varnish and deposits. Check for cracks.
5. Final Rinse
Spray carb body and blow dry with compressed air.
STEP 4: INSPECTION
Float:
- No cracks or holes
- Moves freely
- No fuel inside
Float Needle:
- Tip not worn or grooved
- Spring functions properly
Gaskets and O-Rings:
- Replace all with new ones from kit
Throttle Slide:
- Moves smoothly
- No tears in diaphragm (if equipped)
Jets:
- Not clogged
- Correct size
- Threads intact
STEP 5: REBUILD KIT INSTALLATION
Your SHINDY rebuild kit includes:
- Float bowl gasket
- O-rings
- Float needle valve
- Pilot jet (sometimes)
- Idle mixture screw O-ring
- Other model-specific gaskets
Install New Components:
Install new float needle, float, float pin, float bowl gasket, all O-rings, and mixture screw O-ring. Check float height per service manual.
STEP 6: REASSEMBLY
1. Install Jets
Install pilot jet first, then main jet. Snug only.
2. Install Idle Mixture Screw
Gently seat screw, then back out to original position (typically 1.5–2.5 turns).
3. Install Float Assembly
Ensure needle seats properly and float moves freely.
4. Install Float Bowl
Install new gasket and tighten screws evenly.
5. Install Remaining Components
Throttle slide, needle, choke plunger, covers.
STEP 7: INSTALLATION
1. Prep Carburetor
Verify all parts installed and screws tight.
2. Install on ATV
Reconnect intake boot, clamps, throttle cable, choke cable, fuel line, vent hoses, and air box.
3. Reference Photos
Match original routing and connections.
STEP 8: INITIAL START AND ADJUSTMENT
1. Pre-Start Check
Turn fuel on, check for leaks, verify throttle and choke operation.
2. First Start
Start engine, warm up 2–3 minutes, check for leaks.
3. Initial Adjustment
Set idle speed (1,200–1,500 RPM). Adjust mixture screw for smoothest idle.
4. Test Ride
Check throttle response and all RPM ranges.
TROUBLESHOOTING COMMON ISSUES
Won't Start:
- Float height incorrect
- Pilot jet clogged
- Mixture screw incorrect
- Air leak
- Fuel off
Runs Rich:
- Float level too high
- Main jet too large
- Choke stuck
- Air filter clogged
Runs Lean:
- Float level too low
- Pilot jet clogged
- Air leak
- Jets too small
Leaking Fuel:
- Bowl gasket not seated
- Float needle worn
- Float height wrong
- Overflow hose disconnected
JETTING FOR ALTITUDE AND MODS
High altitude = smaller jets
More airflow (exhaust/filter mods) = larger jets
Change 1–2 sizes at a time and test.
MAINTENANCE TIPS
- Use fuel stabilizer for storage
- Drain carb before long-term storage
- Replace fuel filter annually
- Use fresh fuel
- Clean air filter regularly
Rebuild every 2–3 years or after sitting with old fuel.
FREQUENTLY ASKED QUESTIONS
Q: Can I clean my carb without a rebuild kit?
A: You can, but old gaskets will likely leak. Kits are cheap insurance.
Q: How do I know jet sizes?
A: Numbers are stamped on the jets.
Q: Should I replace the float needle?
A: Yes. Even if it looks fine, worn needles cause flooding.
Q: Can I use WD-40 instead of carb cleaner?
A: No. Use proper carburetor cleaner.
Q: How tight should jets be?
A: Snug only. Brass strips easily.
Q: Still runs poorly?
A: Check for air leaks, float height, clogged passages, or ignition issues.
MODEL-SPECIFIC NOTES
Honda TRX250 Recon:
- Simple carb
- Common pilot jet clogging
Honda TRX400EX:
- Larger carb
- Pay attention to accelerator pump
Honda TRX450/500 Foreman:
- Similar to Rancher
- Choke plunger issues common
- Idle circuit critical
READY TO REBUILD?
A carburetor rebuild is one of the most satisfying and cost-effective repairs you can do. Take your time, stay organized, and your Honda will reward you with reliable performance for years to come.
