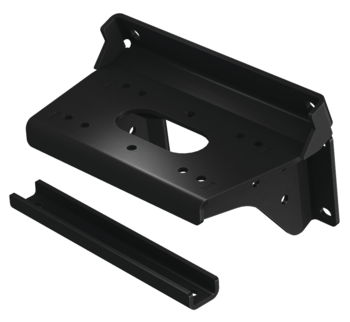

KFI #101230 Kawasaki Mule PRO FXT DXT FX DX Winch Mount

KFI #101230 Kawasaki Mule PRO FXT DXT FX DX Winch Mount

Regular price
$68.95
Sale price
$68.95
Regular price
Sold out
Unit price
per

Brand New "KFI" Winch Mount for the following Kawasaki UTV's:

Kawasaki Model Year
820 Mule PRO-FXT/FX (see !!NOTICE!! below) '15-21
820 Mule PRO-FXR(see !!NOTICE!! below) '18-21
1000 Mule PRO-DXT/DX Diesel (see !!NOTICE!! below) '16-21

!! NOTICE !! This Machine will require the purchase of#UTV-WEK(wire extension kit) Due to location of battery.

Designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
  • KFI: AS-50 / AS-50w
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
    • Requires Standard fairlead bracket #100495.
  • WARN:VRX 45 / VRX 45-S
    • Requires Wide fairlead bracket #100695.
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:RT40 / XT40
  • WARN:Vantage 2000-4000lb
  • WARN:ProVantage 2500-4500lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND 2-Hole Winches : 68146 / 61258 / 61297 / 61840
  • BADLAND Standard Winches : 68145 / 61604 / 61257 / 61383
  • BADLAND WIDE Winches : 61384 / 68144 / 61605
  • CHAMPION 2-Hole Winches : 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
  • CHAMPION Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
  • CHAMPION WIDE Winches : 14008 / 14501 / 14551 / 14552 / 40252
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER :KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT :XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR:  X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up
    • All with 3.00" x 6.600" bolt pattern mount-up
  • Traveller: 1078311
  • Traveller:1078088 / 1078302
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35



Specifications:

  • 100% MADE IN USA.
  • Mounted up higher to keep it out of the elements and allow it to fit larger winches.
  • Constructed of 3/16" steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Very easy to install.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.
