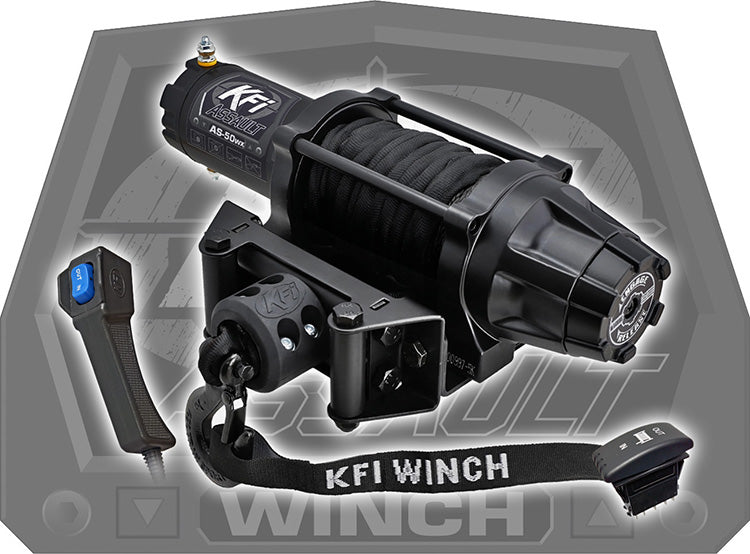

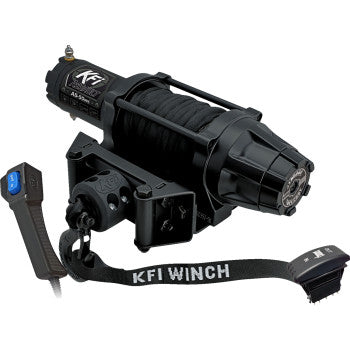

KFI AS‑50WX 5000 lb Assault Wide‑Spool Winch Kit – Synthetic Cable – Dash Rocker Switch, Remote & Contactor – ATV / UTV / SxS

The KFI AS‑50WX Assault Series is a wide‑spool 5000‑lb synthetic winch engineered for UTV and SxS riders who need maximum pulling capacity and extended cable length. Built with a rugged all‑metal drivetrain, water‑resistant seals, and a heavy‑duty cam‑activated freespool clutch, this winch is designed for extreme mud, steep terrain, and heavy recovery situations.
This wide‑spool kit includes a 50' synthetic cable, UTV dash‑mounted rocker switch, 14' handheld corded remote, heavy‑duty electric contactor, and the KFI Split Cable Hook Stopper. Everything is included except the model‑specific winch mount. Backed by KFI’s Two‑Year Limited Lifetime Warranty, the AS‑50WX is one of the strongest and most capable winches in the Assault lineup.

⭐ Key Features
•     5000 lb rated line pull
•     Wide‑spool design for increased cable capacity
•     Synthetic cable with protective sheath
•     Dynamic + mechanical braking system
•     Water‑resistant seals for mud, snow, and wet conditions
•     All‑metal planetary gear drive
•     All‑metal cam‑activated freespool clutch
•     Includes UTV dash‑mounted rocker switch (blue LED backlight)
•     Includes 14' handheld corded remote
•     Heavy‑duty electric contactor protects electrical system
•     Includes KFI Split Cable Hook Stopper
•     Wide 4‑hole mounting pattern (3.00" × 6.60")
•     Backed by KFI’s Two‑Year Limited Lifetime Warranty

📦 What’s Included
•     50' synthetic cable w/ 5' protective sheath (#SYN25‑S50)
•     UTV dash‑mounted rocker switch (UTV‑DRS‑K)
•     14' handheld corded remote (ATV‑HR)
•     Heavy‑duty electric contactor (AS‑CONT)
•     Split Cable Hook Stopper (ATV‑SCHS)
•     Multi‑directional POM roller fairlead
•     Wiring harness & hardware
•     Installation instructions

📐 Specifications (AS‑50WX Assault Series)
•     Model: AS‑50WX
•     Rated Line Pull: 5000 lbs
•     Motor: 12V DC, 1.22 hp permanent magnet
•     Gear Ratio: 180:1
•     Gear/Transmission: All‑metal planetary gear drive
•     Brake: Dynamic & mechanical
•     Clutch: All‑metal cam‑activated freespool
•     Drum Size: 1.75" (D) × 4.88" (L)
•     Synthetic Cable: 15/64" × 50' (smoke color)
•     Fairlead: Multi‑directional POM roller
•     Control: Dash rocker switch + heavy‑duty corded remote
•     Dimensions: 15.63" L × 4.45" D × 4.76" H
•     Mount Plate: Fairlead mount only

•     Bolt Pattern: 3.00" × 6.60" (wide 4‑hole)
•     Recommended Battery: 12 Ah minimum
•     Weight: 27.8 lbs (complete kit)
•     Warranty: Two‑Year Limited Lifetime
•     Certification: CE Certified

🔧 Fitment
This is a universal ATV / UTV / SxS wide‑spool winch designed to fit machines using the wide 4‑hole mounting pattern (3.00" × 6.60").
A model‑specific winch mount is required (sold separately)
