Winch Details:

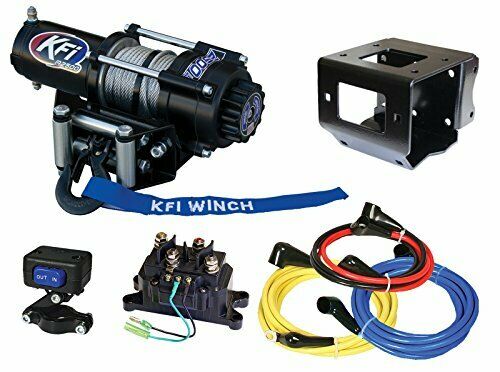

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 2500lb ATV Series winch features quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a "KFI 1-Year Limited Warranty". The KFI A2500 winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.
Winch Includes:
Take control of your winch with the included Mini-Rocker Switch. It comes with an adjustable bracket to mount on to your ATV's handlebars. This allows you to control your winch with just the touch of your finger, never having to let go of your handlebars.
The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.
| A2500-R2 Specifications | |
| Model | A2500-R2 ATV Series |
| Rated Line Pull | 2500 lbs. |
| Motor | 12V DC, 1.1 hp Permanent Magnet |
| Gear Ratio | 171:1 |
| Gear/Transmission | All-metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch (free spooling) | All Metal Cam Activated Freespool |
| Drum Size | 1.5" (D) x 3.15" (L) |
| Cable | 3/16" (D) x 45.9' (L) |
| Fairlead | Multi-directional Roller |
| Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch |
| Winch Dimensions | 12.67" L x 4.06" D x 4.29" H |
| Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
| Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 1 Year |
| Winch Weight | 25.7 lbs. (complete kit) |
Brand New "KFI" Winch Mount for the Following Polaris ATV's:
| Polaris ATV's | Year |
| Scrambler 850 | '13-20 |
| Scrambler 1000 | '14-18 |
| Sportsman ETX | '15-16 |
| Sportsman 400 | '11-14 |
| Sportsman 450 | '16-21 |
| Sportsman 500 | '11-13 |
| Sportsman 500 Touring | '11-13 |
| Sportsman 550 (XP) | '09-14 |
| Sportsman 550 Touring | '10-14 |
| Sportsman 550 X2 | '10-14 |
| Sportsman 570 / SP | '14-20 |
| Sportsman 570 Touring | '14-20 |
| Sportsman 570 X2 | '15-20 |
| Sportsman 800 | '11-14 |
| Sportsman 850 (XP, Highlifter) | '09-20 |
| Sportsman 850 Touring | '10-20 |
| Sportsman 850 X2 | 2011 |
| Sportsman 1000 XP | '15-20 |
| Sportsman 1000 Touring | '15-20 |
| Sportsman 6x6 Big Boss | '11-20 |
Supersedes Winch Mount #101740 and 100740
Mount designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AS-50 (requires purchase of ATV-MR)
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : LT2000 / LT2500 / LT3000 / LT4000ATV (Will NOT work with Terra 25/35/45)
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
-
MASTER LOCK :1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY :Work Power 1500 and 2500
- BADLAND: 2-Hole Winches (Click Here for Details)
- BADLAND: Standard Winches (Click Here for Details)
-
VENOM: 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up.
- CHAMPION : 2-Hole Winches (Click Here for Details)
- CHAMPION : Standard Winches (Click Here for Details)
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
-
KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
SMITTYBILT :XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT :XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern.
-
Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA.
- Constructed of 10 GA GR50 steel
- Designed to fit between in the OEM location below the radiator
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Mounts the same as OEM intended.
- Works with all Polaris OEM Brush Guards and Double Tube Bumpers.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Will work with Polaris Glacier Plow.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
