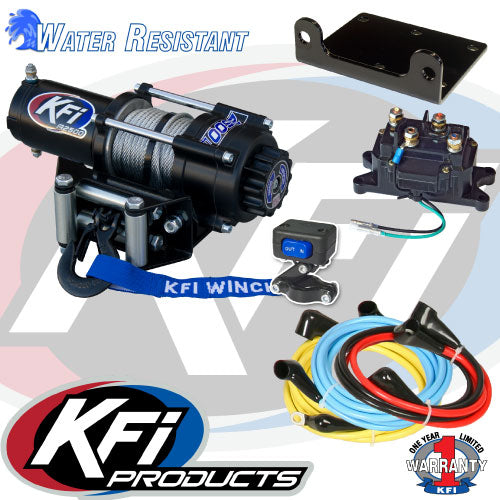

KFI A2500‑R2 2500 lb ATV Winch Kit – Steel Cable – Mini‑Rocker Switch & Contactor – Fits Standard 4‑Hole ATV Mounts

OVERVIEW

The KFI A2500‑R2 is a complete winch kit engineered for reliable trail recovery, mud extraction, and utility work on ATVs. Constructed with a cast-aluminum and steel housing containing sealed electrical components and pre-installed steel cable, this assembly delivers heavy-duty pulling power directly out of the box. It mounts securely to frames using the standard four-hole pattern, though vehicle-specific brackets remain necessary for installation.

ENGINEERING & PERFORMANCE

A 12V permanent magnet motor drives a 171:1 all-metal planetary gear system to supply steady torque under sustained loads. Dynamic combined with mechanical braking prevents uncontrolled drum slip when tension suddenly releases, while the cam-activated freespool clutch enables rapid manual cable adjustments without cross-threading. Internal waterproof seals protect the contactor and motor brushes from moisture, slush, and abrasive trail debris during extended field use. The handlebar-mounted mini-rocker switch routes through a heavy-duty electric contactor for clean power delivery and immediate response.

KEY FEATURES

• 2500 lb rated line pull capacity
• Cast aluminum and steel mechanical housing
• All-metal planetary gear drive with 171:1 reduction
• Dynamic and mechanical braking system
• All-metal cam-activated freespool clutch
• Water-resistant seals for wet and icy environments
• Multidirectional roller fairlead guides steel cable
• Handlebar-mounted mini-rocker switch with heavy-duty electric contactor

TECHNICAL SPECIFICATIONS

• Brand: KFI
• Part Name: A2500-R2 ATV Winch Kit
• Rated Pulling Capacity: 2500 lbs
• Cable Type: 3/16″ × 45.9′ steel cable
• Motor: 12V DC, 1.2 hp permanent magnet
• Gear Ratio: 171:1
• Brake System: Dynamic and mechanical
• Clutch Type: All-metal cam-activated freespool
• Fairlead: Multidirectional roller
• Dimensions: 12.67″ L × 4.06″ D × 4.29″ H
• Bolt Pattern: 3.00″ × 4.875″ (4-hole)
• Minimum Battery Requirement: 12 Ah
• Unit Weight: 25.7 lbs (complete kit)

FITMENT

• Universal — fits most ATV applications as specified.

WHY RIDERS CHOOSE THIS

Riders favor this kit because it arrives fully integrated with rope, switches, and hardware already installed, eliminating the guesswork of bare-winch builds. The all-metal planetary gears and split braking configuration convert heavy crank forces into predictable stops, which keeps loaded sleds and stalled riders secure on soft ground. Routing controls through a seat-height rocker switch allows operators to manage line speed and direction directly from the handlebars without breaking their grip or leaning forward. Paired with a straightforward four-hole footprint, the A2500-R2 mounts quickly to front frames and delivers consistent performance across utility work, trail riding, and harsh weather conditions.
