KFI 4500‑lb Winch & Mount Combo Kit – Fits Polaris Ranger XP 900 / XP 1000 / Crew / Diesel / Pro XD (2013–2019) & Gravely Atlas JSV – Complete UTV Winch Package

This KFI Winch & Mount Combo Kit gives your Polaris Ranger or Gravely Atlas JSV a complete, ready‑to‑install winching solution. The package includes the powerful KFI U45‑R2 4500‑lb UTV Winch and a USA‑made KFI heavy‑duty winch mount, engineered specifically for full‑size Ranger models. Whether you’re working, trail riding, or plowing snow, this kit provides reliable pulling power and a secure, precision‑fit mounting system.
The winch features a 1.7 hp permanent‑magnet motor, all‑metal planetary gears, dynamic + mechanical braking, and water‑resistant seals. The mount is built from 3/16" Grade 50 steel, bead‑blasted, and powder‑coated for maximum durability. Together, they deliver a rugged, dependable setup designed for real‑world UTV use.

🔧 Vehicle Compatibility
Gravely
•     Atlas JSV – All years

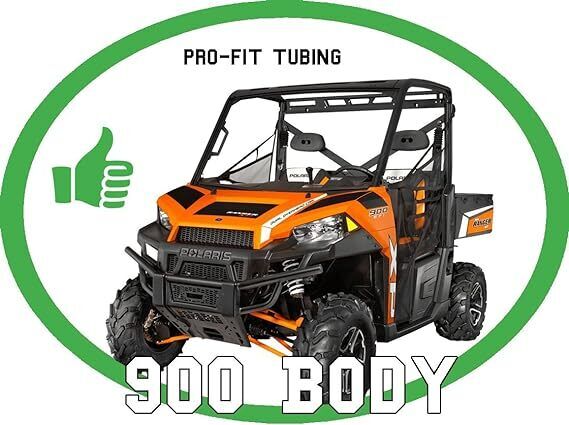

Polaris Full‑Size Ranger
•     Ranger 570 (900‑style Pro‑Fit frame) – 2015
•     Ranger Brutus (Base / CAB) – 2013–2018
•     Ranger Crew 570 (900‑style Pro‑Fit frame) – 2015–2016 **
•     Ranger Crew 900 – 2014–2019 **
•     Ranger Crew Diesel (1000) – 2015–2018 **
•     Ranger Crew Pro XD (Gas / Diesel) – 2019–2026 **
•     Ranger Crew XP 1000 – 2017–2018 **
•     Ranger Crew XP 1000 Northstar – 2017–2018 **

•     Ranger Diesel (1000) – 2015–2018
•     Ranger Diesel HST / Deluxe – 2014–2017
•     Ranger Pro XD (Gas / Diesel) – 2019–2026
•     Ranger XP 570 (900‑style Pro‑Fit frame) – 2016
•     Ranger XP 900 – 2013–2019
•     Ranger XP 1000 – 2017
•     Ranger XP 1000 Northstar – 2017
Note: Models marked ** require KFI Wire Extension Kit #UTV‑WEK due to battery location.

💪 Winch Features (KFI U45‑R2 – 4500 lb)
•     Rated Line Pull: 4500 lbs
•     Motor: 12V DC, 1.7 hp permanent magnet
•     Gear Ratio: 166:1
•     Transmission: All‑metal planetary gear drive
•     Brake: Dynamic + mechanical
•     Clutch: All‑metal cam‑activated freespool
•     Cable: 15/64" x 38' steel cable (#UTV‑CBL‑4K)
•     Fairlead: Multi‑directional roller
•     Control:
•     Deluxe dash‑mounted rocker switch
•     14' handheld corded remote

•     Winch Dimensions: 14.6" L x 4.55" D x 5" H
•     Bolt Pattern: 3.00" x 4.875" (4‑hole)
•     Recommended Battery: 12 Ah minimum
•     Weight: 36.6 lbs (complete kit)
•     Certification: CE Certified
•     KFI Warranty: 1‑year limited

🛠️ Mount Features (KFI USA‑Made Mount)
•     100% Made in the USA
•     Built from 3/16" Grade 50 steel
•     Metal bead‑blasted before powder coating for superior finish
•     Black powder‑coated for corrosion resistance
•     Installs easily with included hardware
•     Positions winch tucked behind the front bumper for protection
•     Includes complete installation instructions
•     Roller fairlead not included (uses standard 4.875" bolt pattern)

🔌 Winch Compatibility (Supported Brands)
This mount supports dozens of winches using standard bolt patterns, including:
KFI
ST17, A2000, A2500‑R2, A3000, U45‑R2, U45w‑R2, SE25, SE35, SE45‑R2, SE45w‑R2, AM‑25, AM‑35, AS‑25, AS‑35, AS‑50x, AS‑50wx
WARN
VRX 25/35/45 (and S versions), A2000, A2500, U2500, 1.5ci, 2.5ci, 3.0ci, RT/XT series, Vantage 2000–4000, ProVantage 2500–4500
SUPERWINCH
Terra 25/35/45, LT2000–4000, UT3000, A3500, SR versions
BADLAND
2‑hole, standard, wide, Apex 5500 wide

CHAMPION
2‑hole, ATV 4‑hole, UTV 4‑hole, wide
MILE MARKER
PE2.5, PE3.5, VMX2.5, PE2000–3500
Other Brands
Cycle Country, Keeper Trakker, Smittybilt XRC, XGear, Venom, Traveller, QuadBoss, and others using:
•     4‑hole 3.00" x 4.875"
•     4‑hole wide 3.00" x 6.60"
•     2‑hole 3.10"

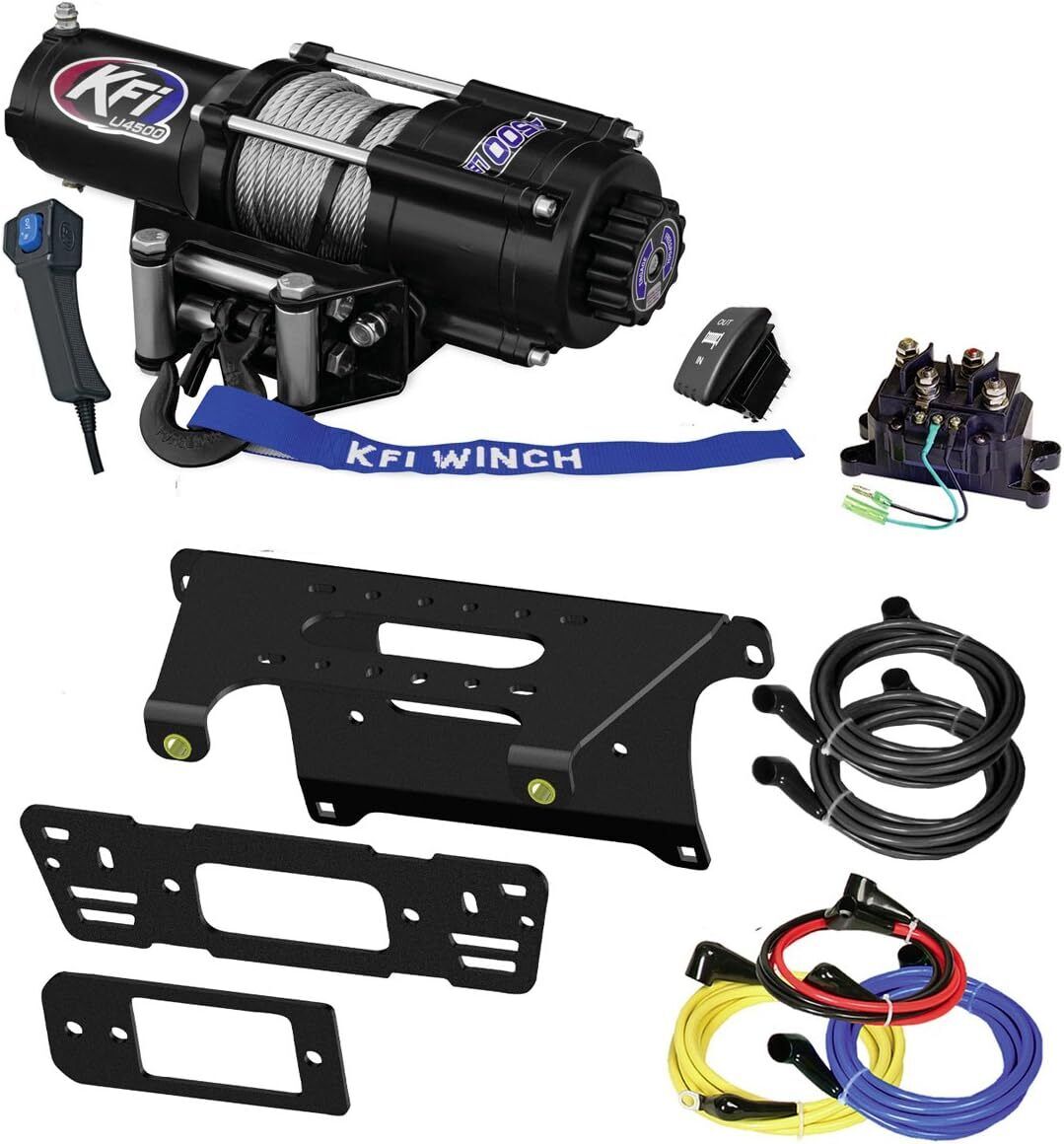

📦 What’s Included
•     KFI U45‑R2 4500‑lb UTV Winch
•     KFI USA‑Made Winch Mount (vehicle‑specific)
•     38' steel cable
•     Multi‑directional roller fairlead
•     Dash‑mounted rocker switch
•     14' handheld corded remote
•     Heavy‑duty electric contactor
•     All mounting hardware
•     Installation instructions
