EMP Fairlead Bracket – 2500‑4000 lb Winches – Standard & Wide Spool Bolt Patterns

OVERVIEW

The EMP Fairlead Bracket delivers a robust mounting solution to secure winch fairleads and maintain precise line alignment for safer recovery operations. Built from laser-cut steel, this heavy-duty bracket anchors fairleading hardware directly to vehicle frames for improved durability and reduced vibration. Designed for broad compatibility, it accommodates virtually all 2500–4000 lb winch models regardless of spool width.

ENGINEERING & PERFORMANCE

Precision laser-cut steel provides high structural integrity, keeping the fairlead steady against lateral loads and preventing rope chafing under heavy tension. The bracket resolves complex installation challenges by supporting a broad range of winch bolt configurations, eliminating the need for custom adapters or welded fixes. By locking the fairlead into a stable orientation, this component ensures smooth line guidance and faster pickup speeds during challenging trail recoveries. The mounting interface also mates cleanly with EMP Extreme Front Bumpers for a reinforced, integrated front-end appearance.

KEY FEATURES

• Laser-cut steel construction resists deformation and impact damage

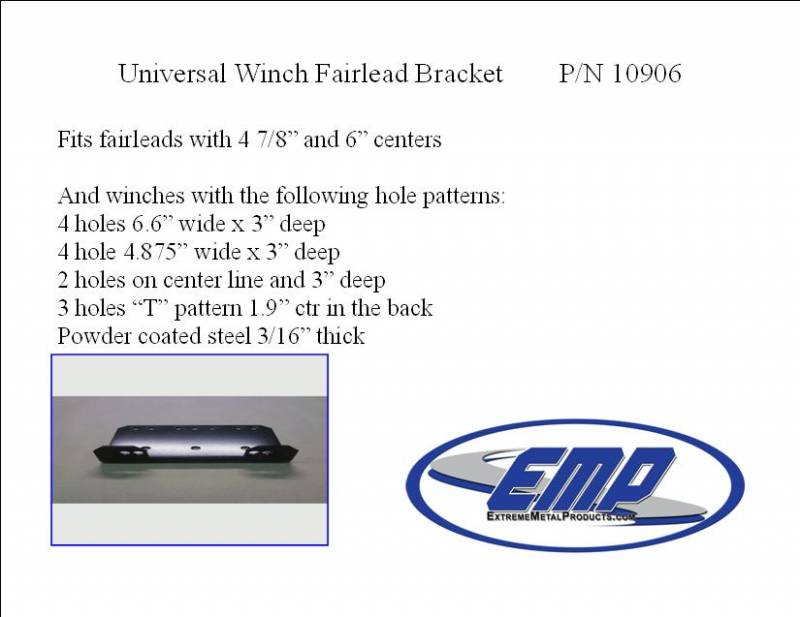

• Supports standard 4-hole winch pattern measuring 4.875 inches wide by 3 inches deep
• Accommodates wide-spool 4-hole winch pattern measuring 6.6 inches wide by 3 inches deep
• Accepts centerline 2-hole pattern spaced 3 inches apart
• Compatible with 3-hole "T" pattern configuration featuring 1.9-inch center spacing
• Works with fairleads utilizing 4-7/8-inch bolt centers
• Compatible with fairleads utilizing 6-inch bolt centers
• Includes mounting hardware where applicable for direct bolt-on replacement
• Optimized for integration with EMP Extreme Front Bumpers

TECHNICAL SPECIFICATIONS

• Brand: Extreme Metal Products (EMP)
• Part Name: Fairlead Bracket
• Accessory Type: Fairlead Bracket
• Material: Laser-cut steel
• Winch Compatibility Class: 2500–4000 lb
• Fairlead Bolt Centers: 4-7/8", 6"
• Bolt Pattern Coverage: Standard, Wide-Spool, Centerline, T-Pattern
• Included Hardware: Mounting fasteners included where applicable

FITMENT

• Universal — fits most UTV and side-by-side applications as specified.

WHY RIDERS CHOOSE THIS

Riders select this EMP Fairlead Bracket to replace damaged mounts or upgrade installations with a component that prioritizes long-term reliability and straight-line performance. The substantial steel build keeps the fairlead from shifting during high-load scenarios, which protects synthetic ropes from abrasion and maintains consistent pulling power over rough terrain. Broad bolt-pattern compatibility simplifies the swap process significantly, allowing users to adapt standard or wide-spool winches without fabricating new brackets. When installed alongside EMP Extreme Front Bumpers, this bracket completes a cohesive, heavy-duty recovery system built for aggressive off-road use.
