Honda 4-Wheeler Rear Brake Adjustment Kit - Replaces Spring, Clevis Pin & Nut

OVERVIEW

Rear brakes on Honda four-wheelers degrade over time as linkage hardware stretches or fails, resulting in poor pedal return and inconsistent stopping power. This rear brake adjustment kit provides a complete set of replacement components to restore the tension and alignment of the brake mechanism on select ATV models. Designed using the specified dimensions and mounting geometry, this kit rebuilds the adjuster assembly for reliable operation without requiring additional fabrication.

ENGINEERING & PERFORMANCE

The included adjustment spring measures exactly 3-3/4 inches, providing the calibrated force needed to pull the cam follower back after brake application and prevent drag. The clevis pin is shaped for the Joint B brake arm interface, securing the linkage firmly while allowing free movement through the full range of pedal action. By installing these exact-original components, riders eliminate slack that causes spongy levers and ensures the brake engages immediately upon activation. This set functions as a direct OEM replacement, adhering to the precise tolerances required for the rear brake system to perform as intended.

KEY FEATURES

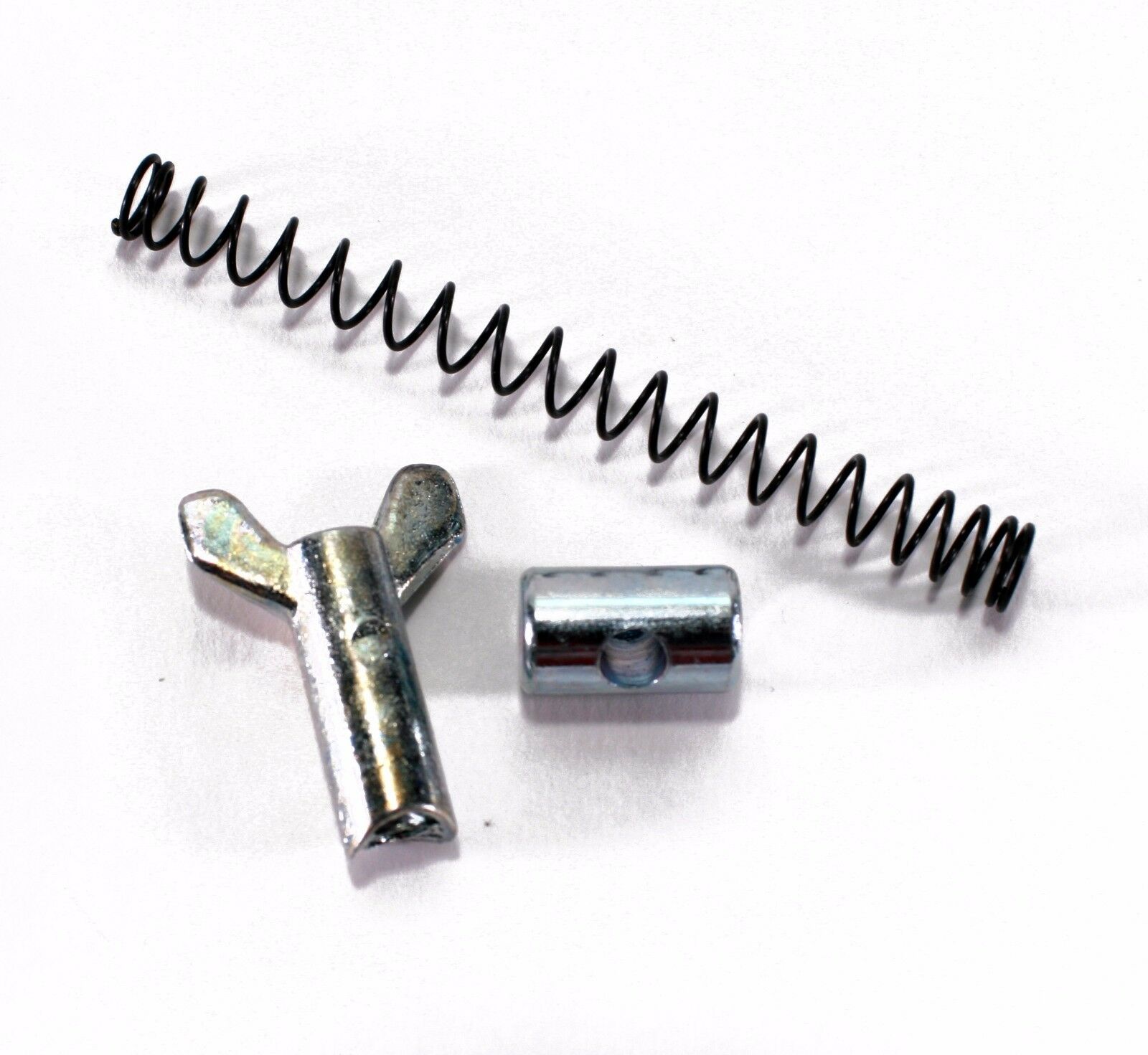

• Rear brake adjustment kit containing the essential hardware for Honda ATV maintenance
• Includes one adjustment spring measuring 3-3/4 inches for correct return tension
• Includes one adjustment nut for threading and securing the linkage assembly
• Includes one clevis pin configured for the Joint B brake arm connection
• Replaces OEM reference numbers 43459-HM5-A10, 43459-VM4-000, 43467-HA0-000, and 43453-250-000
• Requirements indicate 1 to 2 kits per wheel depending on the installation configuration

TECHNICAL SPECIFICATIONS

• Part Name: Rear Brake Adjustment Kit
• Component Type: Adjustment Spring, Adjustment Nut, Clevis Pin
• Spring Length: 3 3/4 inches
• Pin Specification: Joint B Brake Arm Design
• Equiv. OEM Numbers: 43459-HM5-A10, 43459-VM4-000, 43467-HA0-000, 43453-250-000
• Application Window: 1985–2017 (model dependent)
• Model Compatibility: FourTrax 200, Recon, FourTrax 300, Odyssey, FourTrax 4x4, Rancher, Pilot, Foreman, Rincon

FITMENT

• Honda FourTrax 200 / 200D / 200L (1990–1997)
• Honda FourTrax 200SX (1986–1988)
• Honda FourTrax 250 (1985–1987)
• Honda Recon (1997–2017)
• Honda FourTrax 300 4x4 (1988–2000)
• Honda Odyssey (1985)
• Honda FourTrax 4x4 (1986–1988)
• Honda Rancher (2000–2006)
• Honda Pilot (1989–1990)
• Honda FourTrax AT Rancher (2004–2006)
• Honda Foreman 400 (1995–2003)
• Honda Foreman 450 (1998–2004)
• Honda Foreman Rubicon (2001–2004)
• Honda Rincon (2003–2005)

WHY RIDERS CHOOSE THIS

This kit addresses the most common cause of rear brake inefficiency on vintage Honda ATVs: worn or missing adjuster hardware that prevents proper pawl engagement. Riders appreciate the guaranteed fitment of the 3-3/4 inch spring and the dedicated joint B pin, which eliminates guesswork and avoids the frustration of mismatched aftermarket substitutes. Proper tensioning restores crisp pedal actuation and releases the brake drum completely, reducing wear cost and maintaining control during demanding off-road conditions. For units outside active service ranges, sourcing a complete replacement kit simplifies restoration and brings the braking system back to factory reliability standards.
