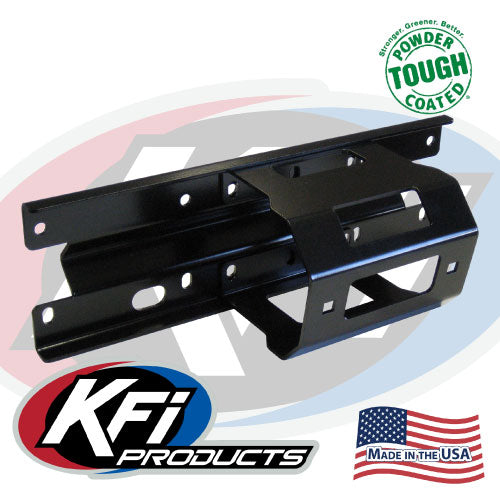

KFI #100440 Winch Mount – Polaris Sportsman 400/450/500/600/700/800 & X2 (2005–2010) – USA Made Heavy‑Duty Winch Bracket

DESCRIPTION
The KFI #100440 Winch Mount is a heavy‑duty, USA‑made upgrade for Polaris Sportsman and Sportsman X2 ATV models. Built from 10 GA GR50 steel, bead‑blasted, and powder‑coated for maximum durability, this mount installs between the headlights exactly as Polaris intended. It includes bumper access cover cut‑out patterns and works with all Polaris OEM Brush Guards and Double Tube Bumpers. All hardware and instructions are included for a clean, straightforward installation.

FEATURES
• 100% MADE IN USA
• Constructed of 10 GA GR50 steel
• Designed to fit between the headlights
• Includes bumper access cover cut‑out patterns
• Works with all Polaris OEM Brush Guards and Double Tube Bumpers
• Metal bead‑blasted before powder coating for superior finish prep
• Powder‑coated black for supreme durability
• Mounts the same way OEM intended
• Very easy to install
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed
• Roller fairlead and winch not included

FITMENT – POLARIS ATV

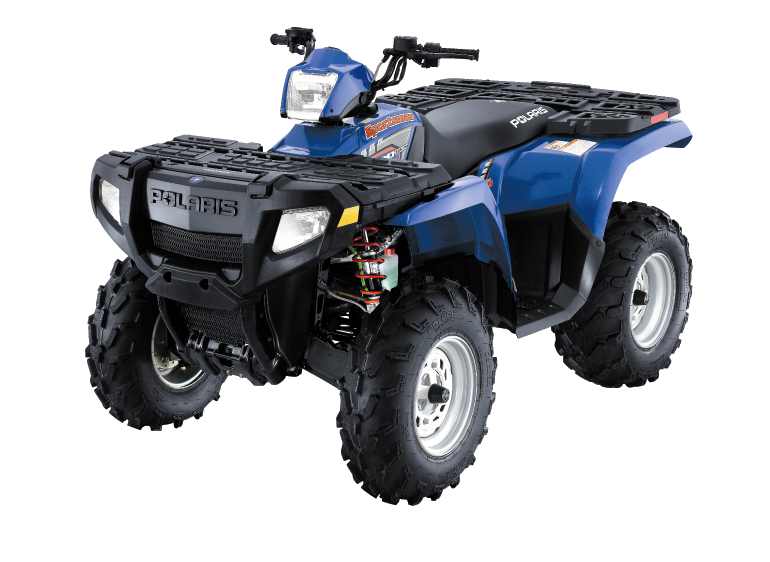

• Sportsman 400 — 2005
• Sportsman 450 — 2006–2007
• Sportsman 500 — 2005–2010
• Sportsman 500 Touring — 2008–2010
• Sportsman 500 X2 — 2006–2009
• Sportsman 600 — 2005
• Sportsman 700 — 2005–2006
• Sportsman 700 X2 — 2008
• Sportsman 800 — 2005–2010
• Sportsman 800 Touring — 2008–2009
• Sportsman 800 X2 — 2007–2009
• Sportsman Big Boss 6x6 — 2009–2010

WINCH COMPATIBILITY
KFI: ST17 / A2000 / A2500‑R2 / A3000 / SE25 / SE35
KFI: AM‑25 / AM‑35 / AS‑25 / AS‑35
KFI: AS‑50x (requires ATV‑MR)

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: Vantage 2000–3000 lb / ProVantage 2500–3500 lb

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR)
SUPERWINCH: A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR)

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

MASTER LOCK: 1500 lb #2955AT

CYCLE COUNTRY: Work Power 1500 / 2500 / PowerMax 2500 / 3500

BADLAND: 2‑Hole Winches / Standard Winches

CHAMPION: 2‑Hole Winches / ATV 4‑Hole Winches

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT2000

SMITTYBILT: XRC 2.0
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)
SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

VENOM: 2000–5000 (Standard)
• 3.00" x 4.875" bolt pattern

TRAVELLER: 1078088 / 1078302
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)

STANDARD MOUNTING PATTERNS
• 4‑Hole Standard (3.00" x 4.875" bolt pattern with 4.875" roller bolt pattern)
• 2‑Hole (3.10" with 4.875" roller bolt pattern)
