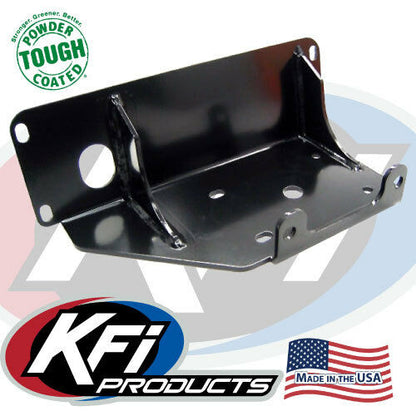

KFI 100650 Winch Mount – Polaris Sportsman GEN4+ / GEN6 (400, 500, 600, 700) – Made in USA

OVERVIEW

The KFI 100650 is a front winch mount engineered to sit securely inside the factory winch pocket between the headlights of select Polaris Sportsman ATVs. Constructed from heavy-duty 3/16-inch steel with a bead-blasted and powder-coated black finish, this replacement bracket restores crucial frame reinforcement at the primary recovery anchor point. The precise fitment ensures optimal winch positioning for sustained high-load operations.

ENGINEERING & PERFORMANCE

Crafted from solid 3/16-inch steel using a heavy-duty welded one-piece design, this bracket withstands severe winching tensions without bending or cracking. Metal bead blasting thoroughly prepares the surface before the resilient black powder coat is cured on, providing rigorous defense against trail mud, salt, and corrosion. The fully reinforced structure delivers significantly stronger fairlead support than factory stamped units, locking drivetrain clearance and maintaining exact mechanical alignment under extreme strain.

KEY FEATURES

• 100% Made in USA construction
• Heavy-duty 3/16-inch steel fabrication
• Metal bead-blasted preparation for lasting adhesion
• Tough powder-coated black exterior finish
• One-piece welded geometry for maximum structural integrity
• Precise fitment in the factory winch pocket between the headlights
• Supports the 4-hole standard bolt pattern (3.00" × 4.875")
• Compatible with Polaris OEM brush guard and double tube bumper
• Complete installation instructions included
• Offers stronger fairlead support than the stock Polaris mounting bracket
• Roller fairlead and winch not included

TECHNICAL SPECIFICATIONS

• Brand: KFI
• Part Name: 100650 Winch Mount
• Mount Type: Front
• Material: 3/16-inch steel plate, bead-blasted, powder-coated finish
• Supported Years: 2002–2004.5
• Compatible Trims: Polaris Sportsman 400, 500, 600, 700

FITMENT

• Polaris Sportsman 400 (2004–2004.5)
• Polaris Sportsman 500 (2004–2004.5)
• Polaris Sportsman 600 (2003–2004.5)
• Polaris Sportsman 700 (2002–2004.5)

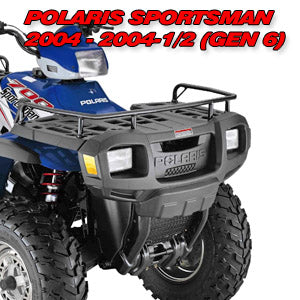

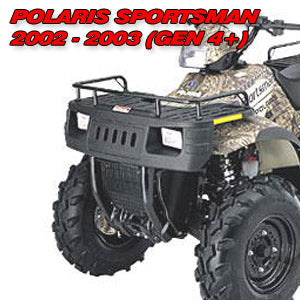

NOTE: Will ONLY work with Polaris Sportsman models that have the front ends pictured in the product images.

WHY RIDERS CHOOSE THIS

Operators seeking reliable ground support install the KFI 100650 to permanently replace thin factory brackets that consistently crack under heavy line loads. The substantial steel thickness and seamless welding joints lock roller fairleads and winches firmly in position, preventing dangerous misalignment during emergency extraction pulls. Fitting exactly into the manufacturer-designed opening preserves clean access to internal components while allowing auxiliary bumpers to attach without interference. This durable American-built solution extends equipment lifespan and maintains peak performance across rugged off-road conditions.
