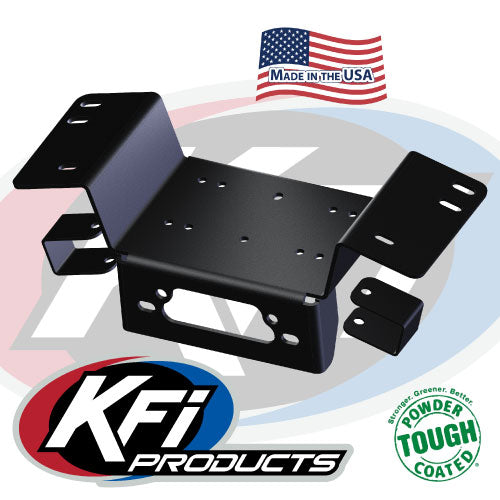

KFI #101150 Winch Mount – Honda Pioneer 700 & 700‑4 (2014–2026) – USA Made Heavy‑Duty Winch Bracket

DESCRIPTION
The KFI #101150 Winch Mount is a heavy‑duty, USA‑made upgrade for Honda Pioneer 700 and Pioneer 700‑4 models. Built from 3/16" steel, bead‑blasted, and powder‑coated for maximum durability, this mount provides a secure and reliable platform for installing a wide range of ATV/UTV winches. All hardware and instructions are included for a clean, straightforward installation.

FEATURES
• 100% MADE IN USA
• Constructed of 3/16" steel
• Metal bead‑blasted before powder coating for superior finish prep
• Powder‑coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed
• Roller fairlead and winch not included

FITMENT – HONDA UTV
• Honda Pioneer 700 — 2014–2026
• Honda Pioneer 700‑4 — 2014–2026

WINCH COMPATIBILITY
KFI: ST17 / A2000 / A2500‑R2 / A3000 / U45‑R2 / U45w‑R2 / SE25 / SE35 / SE45‑R2 / SE45w‑R2
KFI: AM‑25 / AM‑35 / AS‑25 / AS‑35
KFI: AS‑50x / AS‑50wx

WARN: VRX 25 / VRX 25‑S / VRX 35 / VRX 35‑S / VRX 45 / VRX 45‑S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000–4000 lb
WARN: ProVantage 2500–4500 lb

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR)
SUPERWINCH: A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

CYCLE COUNTRY: Work Power 1500 / 2500 / PowerMax 2500 / 3500

BADLAND: 2‑Hole Winches / Standard Winches / WIDE Winches / Apex 5500 Wide

CHAMPION: 2‑Hole Winches / ATV 4‑Hole Winches / UTV 4‑Hole Winches / WIDE Winches

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C / KT2000

SMITTYBILT: XRC 2.0
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)
SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
• 3.00" x 4.875" bolt pattern
• 3.00" x 6.600" bolt pattern

TRAVELLER: 1078311 / 1078088 / 1078302
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)

STANDARD MOUNTING PATTERNS
• 4‑Hole Standard (3.00" x 4.875" bolt pattern)
• 4‑Hole WIDE (3.00" x 6.60" bolt pattern with 6.600" or 6.000" roller bolt pattern)
• 2‑Hole (3.10" with 4.875" roller bolt pattern)

QUADBOSS: RP25 / RP35
