KFI #101215 Winch Mount – Honda Pioneer 500 (2014–2023) & Pioneer 520 (2021–2026) – USA Made Heavy‑Duty Winch Bracket

DESCRIPTION

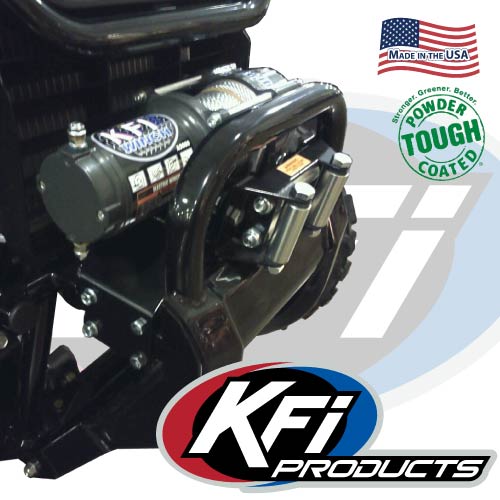

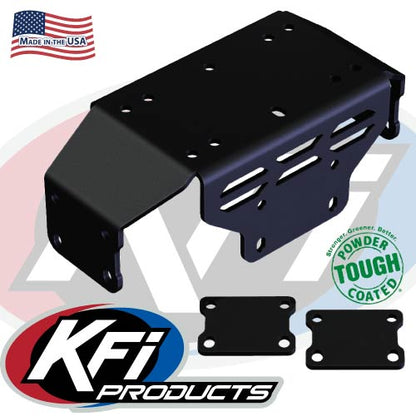

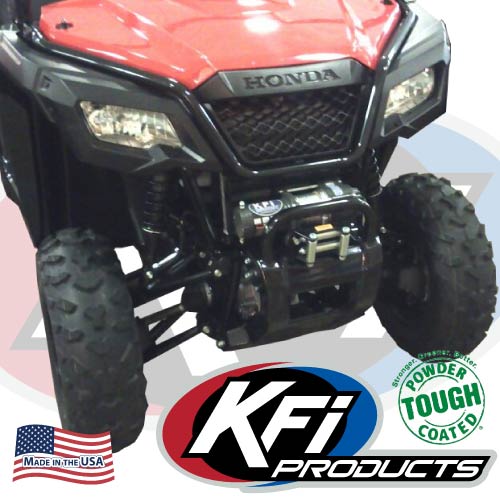

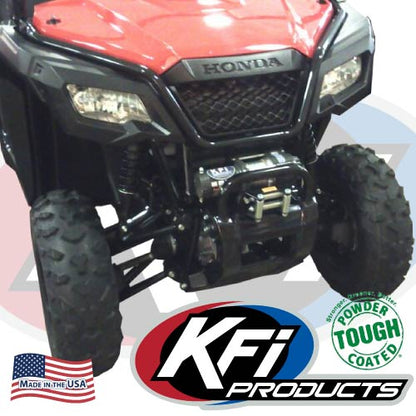

The KFI #101215 Winch Mount is a heavy‑duty, USA‑made upgrade for Honda Pioneer 500 and Pioneer 520 models. Mounted higher on the machine to keep it out of the elements and allow fitment of larger winches, this bracket is built from 3/16" steel, bead‑blasted, and powder‑coated for maximum durability. All hardware and instructions are included for a clean, straightforward installation.

FEATURES
• 100% MADE IN USA
• Mounted higher to protect from the elements and fit larger winches
• Constructed of 3/16" steel
• Metal bead‑blasted before powder coating for superior finish prep
• Powder‑coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed
• Roller fairlead and winch not included

FITMENT – HONDA UTV
• Honda Pioneer 500 — 2014–2023
• Honda Pioneer 520 — 2021–2026

WINCH COMPATIBILITY
KFI: ST17 / A2000 / A2500‑R2 / A3000 / U45‑R2 / U45w‑R2 / SE25 / SE35 / SE45‑R2 / SE45w‑R2
KFI: AM‑25 / AM‑35 / AS‑25 / AS‑35
KFI: AS‑50x / AS‑50wx

WARN: VRX 25 / VRX 25‑S / VRX 35 / VRX 35‑S
• Requires Standard fairlead bracket #101715
WARN: VRX 45 / VRX 45‑S
• Requires Wide fairlead bracket #100695

WARN: AXON 35 / AXON 35‑S / AXON 45RC
• Requires Standard fairlead bracket #101715
WARN: AXON 45 / AXON 45‑S / AXON 55 / AXON 55‑S
• Requires Wide fairlead bracket #100695

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000–4000 lb
WARN: ProVantage 2500–4500 lb

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR)
SUPERWINCH: A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

CYCLE COUNTRY: Work Power 1500 / 2500 / PowerMax 2500 / 3500

BADLAND: 2‑Hole Winches / Standard Winches / WIDE Winches / Apex 5500 Wide

CHAMPION: 2‑Hole Winches / ATV 4‑Hole Winches / UTV 4‑Hole Winches / WIDE Winches

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C / KT2000

SMITTYBILT: XRC 2.0
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)
SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
• 3.00" x 4.875" bolt pattern
• 3.00" x 6.600" bolt pattern

TRAVELLER: 1078311 / 1078088 / 1078302
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)

STANDARD MOUNTING PATTERNS
• 4‑Hole Standard (3.00" x 4.875" bolt pattern)
• 4‑Hole WIDE (3.00" x 6.60" bolt pattern with 6.600" or 6.000" roller bolt pattern)
• 2‑Hole (3.10" with 4.875" roller bolt pattern)

QUADBOSS: RP25 / RP35
