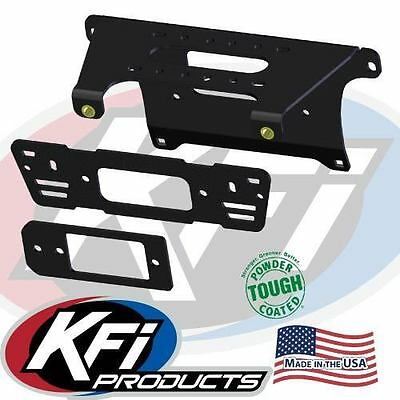

KFI #101345 Winch Mount – Polaris Ranger (570/900/1000/XP/Crew/Pro XD) & Gravely Atlas JSV – USA Made Heavy‑Duty Winch Bracket

DESCRIPTION
The KFI #101345 Winch Mount is a heavy‑duty, USA‑made upgrade for Polaris Ranger and Gravely Atlas JSV models. Built from 3/16" Grade 50 steel, bead‑blasted, and powder‑coated for maximum durability, this mount installs easily and tucks the winch back behind the front bumper for added protection. All hardware and instructions are included for a clean, straightforward installation.

FEATURES
• 100% MADE IN USA
• Constructed of 3/16" Grade 50 steel
• Metal bead‑blasted before powder coating for superior finish prep
• Powder‑coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• Mounts winch tucked back behind front bumper
• Satisfaction guaranteed
• Roller fairlead and winch not included

FITMENT – GRAVELY
• Atlas JSV — ALL Years

FITMENT – POLARIS FULL‑SIZE RANGER
• Ranger 570 (900 Body Style / Pro‑Fit Frame) — 2015
• Ranger Brutus (Base / CAB) — 2013–2018
• Ranger Crew 570 (900 Body Style / Pro‑Fit Frame) — 2015–2016**
• Ranger Crew 900 — 2014–2019**
• Ranger Crew Diesel (1000) — 2015–2018**
• Ranger Crew Pro XD (Gas / Diesel) — 2019–2026**
• Ranger Crew XP 1000 — 2017–2018**
• Ranger Crew XP 1000 NorthStar Edition — 2017–2018**
• Ranger Diesel (1000) — 2015–2018
• Ranger Diesel HST / Deluxe — 2014–2017
• Ranger Pro XD (Gas / Diesel) — 2019–2026
• Ranger XP 570 (900 Body Style / Pro‑Fit Frame) — 2016
• Ranger XP 900 — 2013–2019
• Ranger XP 1000 — 2017
• Ranger XP 1000 NorthStar Edition — 2017

** = Requires purchase of #UTV‑WEK (wire extension kit) due to battery location.

WINCH COMPATIBILITY
KFI: ST17 / A2000 / A2500‑R2 / A3000 / U45‑R2 / U45w‑R2 / SE25 / SE35 / SE45‑R2 / SE45w‑R2
KFI: AM‑25 / AM‑35 / AS‑25 / AS‑35
KFI: AS‑50x / AS‑50wx

WARN: VRX 25 / VRX 25‑S / VRX 35 / VRX 35‑S / VRX 45 / VRX 45‑S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000–4000 lb
WARN: ProVantage 2500–4500 lb

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR)
SUPERWINCH: A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

CYCLE COUNTRY: Work Power 1500 / 2500 / PowerMax 2500 / 3500

BADLAND: 2‑Hole Winches / Standard Winches / WIDE Winches / Apex 5500 Wide

CHAMPION: 2‑Hole Winches / ATV 4‑Hole Winches / UTV 4‑Hole Winches / WIDE Winches

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C / KT2000

SMITTYBILT: XRC 2.0
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)
SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
• 3.00" x 4.875" bolt pattern
• 3.00" x 6.600" bolt pattern

TRAVELLER: 1078311 / 1078088 / 1087302
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)

STANDARD MOUNTING PATTERNS
• 4‑Hole Standard (3.00" x 4.875" bolt pattern)
• 4‑Hole WIDE (3.00" x 6.60" bolt pattern with 6.600" or 6.000" roller bolt pattern)
• 2‑Hole (3.10" with 4.875" roller bolt pattern)

QUADBOSS: RP25 / RP35
