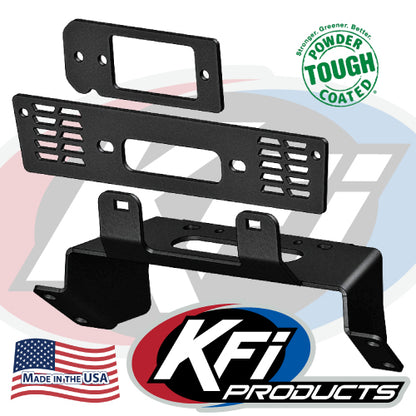

KFI #101560 Winch Mount – Polaris Ranger Mid‑Size 400/500/570/800 & Full‑Size 500/570/700/800/900 – USA Made Heavy‑Duty Winch Bracket

DESCRIPTION
The KFI #101560 Winch Mount is a heavy‑duty, USA‑made upgrade for Polaris Ranger Mid‑Size and Full‑Size models. Built from 3/16" Grade 50 steel, bead‑blasted, and powder‑coated for maximum durability, this mount installs easily and tucks the winch back behind the front bumper for added protection. All hardware and instructions are included for a clean, straightforward installation.

FEATURES
• 100% MADE IN USA
• Constructed of 3/16" Grade 50 steel
• Metal bead‑blasted before powder coating for superior finish prep
• Powder‑coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• Mounts winch tucked back behind front bumper
• Satisfaction guaranteed
• Roller fairlead and winch not included

FITMENT – POLARIS MID‑SIZE RANGER
• Ranger 400 — 2010–2014
• Ranger 500 — 2011–2013
• Ranger 500 — 2017–2022
• Ranger 570 — 2014–2021
• Ranger 800 — 2013–2014
• Ranger Crew 500 — 2011–2013
• Ranger Crew 570 — 2014–2021
• Ranger EXT — 2015–2016
• Ranger EV — 2010–2022

FITMENT – POLARIS FULL‑SIZE RANGER
• Ranger 500 — 2009–2010
• Ranger 570 (800 Body Style / Round Tube Frame) — 2016–2025
• Ranger 700 — 2009
• Ranger 800 — 2010–2014
• Ranger 800 6x6 — 2010–2016
• Ranger Crew 570 (800 Body Style / Round Tube Frame) — 2017–2025
• Ranger Crew 800 — 2010–2013
• Ranger Crew 800 — 2014
• Ranger Crew Diesel (900) — 2012–2014
• Ranger Crew Diesel (900) — 2011–2014
• Ranger XP 700 — 2009
• Ranger XP 800 — 2012

* = Requires purchase of #UTV‑WEK (wire extension kit) due to battery location.

WINCH COMPATIBILITY
KFI: ST17 / A2000 / A2500‑R2 / A3000 / U45‑R2 / SE25 / SE35 / SE45‑R2 / U45w‑R2 / SE45w‑R2
KFI: AM‑25 / AM‑35 / AS‑25 / AS‑35
KFI: AS‑50x / AS‑50wx

WARN: VRX 25 / VRX 25‑S / VRX 35 / VRX 35‑S / VRX 45 / VRX 45‑S
• May require shimming with washers
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
WARN: Vantage 2000–3000 lb / ProVantage 2500–3500 lb
WARN: Vantage 4000 lb / ProVantage 4500 lb

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR)
SUPERWINCH: A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

MASTER LOCK: 1500 lb #2955AT

CYCLE COUNTRY: Work Power 1500 / 2500 / PowerMax 2500 / 3500

BADLAND: 2‑Hole Winches / Standard Winches / WIDE Winches / Apex 5500 (Short & Long Drum)
• May require shimming with washers

CHAMPION: 2‑Hole Winches / ATV 4‑Hole Winches / UTV 4‑Hole Winches / WIDE Winches

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C / KT2000

SMITTYBILT: XRC 2.0
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)
SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

VENOM: 4000 / 4500 / 5000 (Hardcore Series)
• 3.00" x 6.600" bolt pattern
VENOM: 2000–5000 (Standard)
• 3.00" x 4.875" bolt pattern

TRAVELLER: 1078311 / 1078088 / 1078302
• Requires roller fairlead with 4.875" bolt pattern (#ATV‑RF)

STANDARD MOUNTING PATTERNS
• 4‑Hole Standard (3.00" x 4.875" bolt pattern)
• 4‑Hole WIDE (3.00" x 6.60" bolt pattern with 6.600" or 6.000" roller bolt pattern)
• 2‑Hole (3.10" with 4.875" roller bolt pattern)
