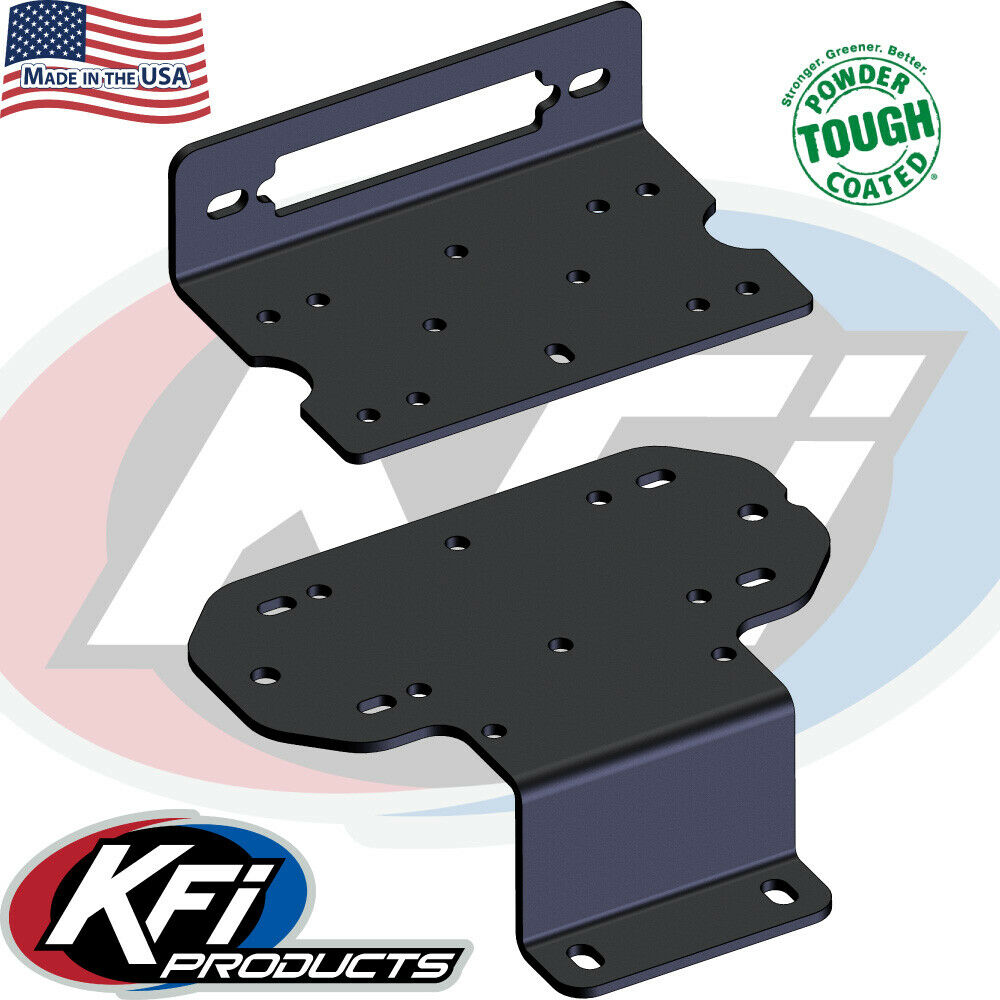

KFI #102550 Yamaha Rhino 450/660/700 Winch Mount

Brand New "KFI" Winch Mount for the following Yamaha UTV's:

• 2006-2011 YAMAHA RHINO 450
• 2003-2007 YAMAHA RHINO 660
• 2008-2013 YAMAHA RHINO 700

Direct replacement for #100550

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI:  AS-50 / AS-50w
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN:VRX 45 / VRX 45-S
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:RT40 / XT40
• WARN:Vantage 2000-3000lb (Will NOT work with Vantage 4000 due to motor lead orientation)
• WARN:ProVantage 2500-4500lbs
  • ProVantage 3500 and 4500 will require lead rotation.
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN:VRX 45 / VRX 45-S
• WARN:AXON 35 / AXON 35-S / AXON 45RC
• WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND 2-Hole Winches : 68146 / 61258 / 61297 / 61840
• BADLAND Standard Winches : 68145 / 61604 / 61257 / 61383
• BADLAND WIDE Winches : 61384 / 68144 / 61605
• CHAMPION 2-Hole Winches : 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
• CHAMPION Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
• CHAMPIONWIDE Winches : 14008 / 14501 / 14551 / 14552 / 40252
• CHAMPION:14001 and 14061 / 14051 / 14560
• KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER :KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT :XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT :XRC 3.0 / XRC 4.0
• XGEAR:  X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up.
  • All with 3.00" x 6.600" bolt pattern mount-up.
• QUADBOSS: RP25 / RP35
• Traveller:1078311
• Traveller:1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)

Specifications:

• 100% MADE IN USA.
• Constructed of 3/16" steel.
• Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.

 Please see the optional 2" Lower Receiver hitch that is available below.

This Receiver works with this mount and will add a 2" Receiver to the front of your Rhino.
