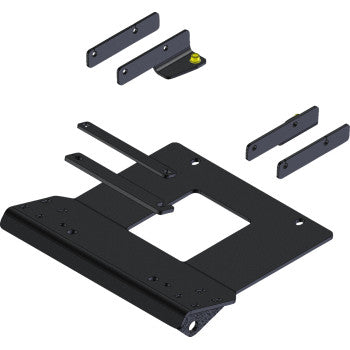

KFI 106240 Front Plow Mount – Yamaha Wolverine RMAX2 & RMAX4 – Compatible with Pro 2.0 / PRO‑V Tube Systems – Made in USA

OVERVIEW

The KFI 106240 Front Lower Plow Mount establishes a reinforced attachment platform for securely fastening KFI plow systems to your utility vehicle, delivering stable tracking and consistent blade control through deep snow. Crafted from heavy-duty 1/4" Grade 50 steel, this mount replaces worn or weak factory tie-in points to prevent flex and blade chatter during high-resistance scraping. Specially designed to interface with the Pro 2.0 and PRO‑V tube frameworks installed on the Yamaha Wolverine RMAX lineup.

ENGINEERING & PERFORMANCE

This front lower mount streamlines daily operations by utilizing standard 5/8" hitch pins, allowing you to quickly detach the plow for transport or reattach it without specialized alignment tools. The primary load-bearing plate and dedicated mounting tabs are formed from resilient 1/4" Grade 50 steel to maintain structural integrity under heavy hydraulic pressure. Surface preparation goes beyond standard manufacturing; parts are thoroughly metal bead-blasted before receiving a dense black powder coat, creating a hardened barrier against corrosive road salts and freezing temperatures.

KEY FEATURES

• Front Lower Plow Mount System provides a direct mounting interface for KFI push tube assemblies
• 1/4" Thick Grade 50 Steel Plate and Tabs deliver exceptional tensile strength and wear resistance
• Metal Bead-Blasted Pre-Process ensures optimal powder-coat adhesion and long-term finish survival
• Black Powder-Coated Surface shields untreated steel from rust, abrasion, and extreme winter conditions
• Quick Attach Mechanism relies on two standard 5/8" hitch pins already included with compatible push tubes
• Complete Hardware Installation ships with all required bolts and step-by-step fitting guide
• Multi-System Framework Support interfaces seamlessly with KFI Pro 2.0 (#106300), legacy round-tube (#105635), and PRO‑V systems
• Proudly Made in the USA

TECHNICAL SPECIFICATIONS

• Brand: KFI
• Part Name: 106240 Front Plow Mount
• Accessory Type: Front Lower Plow Mount
• Material: 1/4" Grade 50 Steel
• Supported Years: 2021–2026
• Compatible Trims: Yamaha Wolverine RMAX2, RMAX4, RMAX4 Compact, RMAX4 (Dump Bed)

FITMENT

• Yamaha Wolverine RMAX2 (2021–2026)
• Yamaha Wolverine RMAX4 (2021–2024)
• Yamaha Wolverine RMAX4 Compact (2025–2026)
• Yamaha Wolverine RMAX4 Dump Bed (2025–2026)
Note: All listed applications require a KFI 2" Leveling Kit to establish correct plow geometry. Select part number #106322 when routing the newer Pro 2.0 Tubes (#106300), or choose part number #105700 for the discontinued round-tube system (#105635). Modifications such as lift kits, larger tires, forward A-arms, and track conversions also mandate this leveling procedure.

WHY RIDERS CHOOSE THIS

Users opt for the KFI 106240 because it converts temporary or flimsy OEM mounting zones into permanent, industrial-grade steel fixtures that absorb torque without warping. The meticulous bead-blasting and multi-stage powder coating routine prevents early paint peeling and rust buildup, keeping the mechanical connection clean throughout harsh freeze-thaw cycles. Standardized 5/8" hitch pin operation drastically cuts down service time during season swaps, while the precision-engineered tab spacing guarantees flawless alignment with the Yamaha Wolverine RMAX when installed alongside the specified leveling kit.

Polaris UTV *	Year	NOTES
Wolverine RMAX2	'21-26	J
Wolverine RMAX4	'21-24	J
Wolverine RMAX4 COMPACT	'25-26	J
Wolverine RMAX4 (Dump Bed)	'25-26	J
