KFI 2" Receiver‑Style Winch Mount #100620 – Universal ATV & UTV Winch Mounting Plate
KFI 2" Receiver‑Style Winch Mount #100620 – Universal ATV & UTV Winch Mounting Plate
Regular price
$89.95 USD
Regular price
Sale price
$89.95 USD
Shipping calculated at checkout.

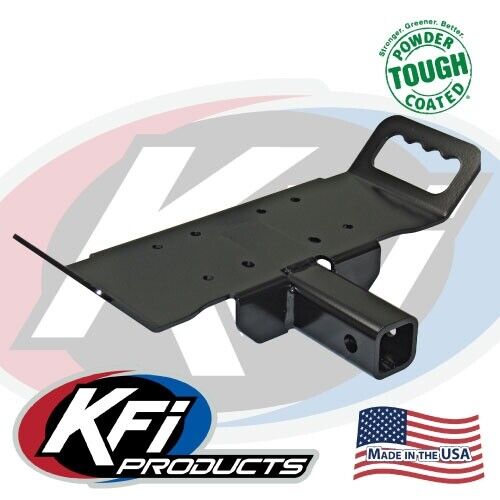

The KFI #100620 2" Receiver‑Style Winch Mount is a heavy‑duty, USA‑made solution that allows you to mount a winch to any ATV or UTV equipped with a standard 2" receiver hitch. Built from premium steel and finished with a durable powder coat, this mount provides a strong, portable, and versatile winching setup for work, recovery, and utility use.
This mount works with a wide range of winches and bolt patterns, including both standard (3.00" × 4.875") and wide (3.00" × 6.600") 4‑bolt patterns.
Fairlead Bracket Requirements
This mount requires a roller fairlead bracket.
If your winch kit did not include one, use:
• Standard 4‑hole (3.00" × 4.875") → KFI #100495
• Wide 4‑hole (3.00" × 6.600") → KFI #100695
• WARN VRX / AXON (standard) → KFI #101715
Compatible Winches
KFI Winches
ST17, S2000, A2000, A2500‑R2, A3000
U45‑R2, U45w‑R2
SE25, SE35, SE45‑R2, SE45w‑R2
AM‑25, AM‑35
AS‑25, AS‑35
AS‑50x, AS‑50wx
KFI Winches
ST17, S2000, A2000, A2500‑R2, A3000
U45‑R2, U45w‑R2
SE25, SE35, SE45‑R2, SE45w‑R2
AM‑25, AM‑35
AS‑25, AS‑35
AS‑50x, AS‑50wx
WARN Winches
A2000, A2500, U2500
1.5ci, 2.5ci, 2.5ce
3.0ci, 3.0ce
VRX 25 / 25‑S
VRX 35 / 35‑S
VRX 45 / 45‑S
AXON 35 / 35‑S
A2000, A2500, U2500
1.5ci, 2.5ci, 2.5ce
3.0ci, 3.0ce
VRX 25 / 25‑S
VRX 35 / 35‑S
VRX 45 / 45‑S
AXON 35 / 35‑S
AXON 45RC
AXON 45 / 45‑S
AXON 55 / 55‑S
RT15 / RT25 / RT30
XT15 / XT25 / XT30
Vantage 2000–3000 lb
ProVantage 2500–3500 lb
RT40 / XT40
Vantage 4000 lb
ProVantage 4500 lb
AXON 45 / 45‑S
AXON 55 / 55‑S
RT15 / RT25 / RT30
XT15 / XT25 / XT30
Vantage 2000–3000 lb
ProVantage 2500–3500 lb
RT40 / XT40
Vantage 4000 lb
ProVantage 4500 lb
SUPERWINCH
Terra 25 / 35 / 45
Terra 2500 (SR) / 3500 (SR) / 4500 (SR)
A3500
LT2000 / LT2500 / LT3000
UT3000
LT4000 (SR) / LT4000ATV / LT4000UTV
Terra 25 / 35 / 45
Terra 2500 (SR) / 3500 (SR) / 4500 (SR)
A3500
LT2000 / LT2500 / LT3000
UT3000
LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER
PE2.5 / PE3.5 / VMX2.5
PE2000 / PE2500 / PE3000 / PE3500
PE2.5 / PE3.5 / VMX2.5
PE2000 / PE2500 / PE3000 / PE3500
MASTER LOCK
1500 lb #2955AT
1500 lb #2955AT
CYCLE COUNTRY
Work Power 1500 / 2500
Powermax 2500 / 3500
Work Power 1500 / 2500
Powermax 2500 / 3500
BADLAND
Apex 5500 Wide
2‑Hole Winches
Standard Winches
Wide Winches
Apex 5500 Wide
2‑Hole Winches
Standard Winches
Wide Winches
CHAMPION
2‑Hole Winches
Standard Winches
Wide Winches
14001 / 14061
2‑Hole Winches
Standard Winches
Wide Winches
14001 / 14061
SMITTYBILT
XRC 2.0 (requires 4.875" fairlead)
XRC 3.0 / XRC 4.0
XRC 2.0 (requires 4.875" fairlead)
XRC 3.0 / XRC 4.0
XGEAR
X3000 / X4000
KEEPER TRAKKER
KT2500 / KT3000
KT2500C / KT3000C
KT4000 / KT4000C
X3000 / X4000
KEEPER TRAKKER
KT2500 / KT3000
KT2500C / KT3000C
KT4000 / KT4000C
KEEPER TRAKKER
KT2500 / KT3000
KT2500C / KT3000C
KT4000 / KT4000C
KT2500 / KT3000
KT2500C / KT3000C
KT4000 / KT4000C
VENOM
2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000
(Hardcore Series – standard & wide patterns)
2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000
(Hardcore Series – standard & wide patterns)
TRAVELLER
1078311
1078088 / 1078302
1078311
1078088 / 1078302

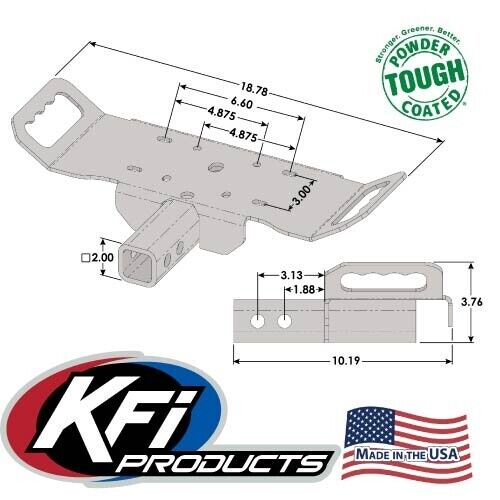

Supported Bolt Patterns
• 4‑Hole Standard: 3.00" × 4.875"
• 4‑Hole Wide: 3.00" × 6.600"
• 2‑Hole: 3.10" (requires 4.875" fairlead)
Specifications
• 100% Made in the USA
• Fits any ATV/UTV with a 2" receiver hitch
• Heavy‑duty steel construction
• Metal bead‑blasted before powder coating for superior finish prep
• Black powder‑coated for maximum durability
• Works with standard and wide winch bolt patterns
• Easy installation
• All hardware included
• Winch & fairlead not included
