Brand New "KFI" Winch Mount for the following Kawasaki ATV's:
Kawasaki Model | Year |
Brute Force 650 4x4 | '05-14 |
Brute Force 650 4x4i | '06-14 |
Brute Force 750 4x4, 4x4i, 4x4i EPS | '05-21 |
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- Brute Force 750 ONLY: KFI: U45-R2 / SE45-R2
- KFI: AS-50 (Requires purchase of ATV-MR)
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
-
MASTER LOCK :1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND: 2-Hole Winches (Click Here for Details)
- BADLAND: Standard Winches (Click Here for Details)
- CHAMPION : 2-Hole Winches (Click Here for Details)
- CHAMPION : Standard Winches (Click Here for Details)
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
-
KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
SMITTYBILT :XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT :XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
-
Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
Winch Details:
Whether it’s on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. The compact 2000lb ATV Series winches feature quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty, all metal turn clutch. All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV model specific winch mount. Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

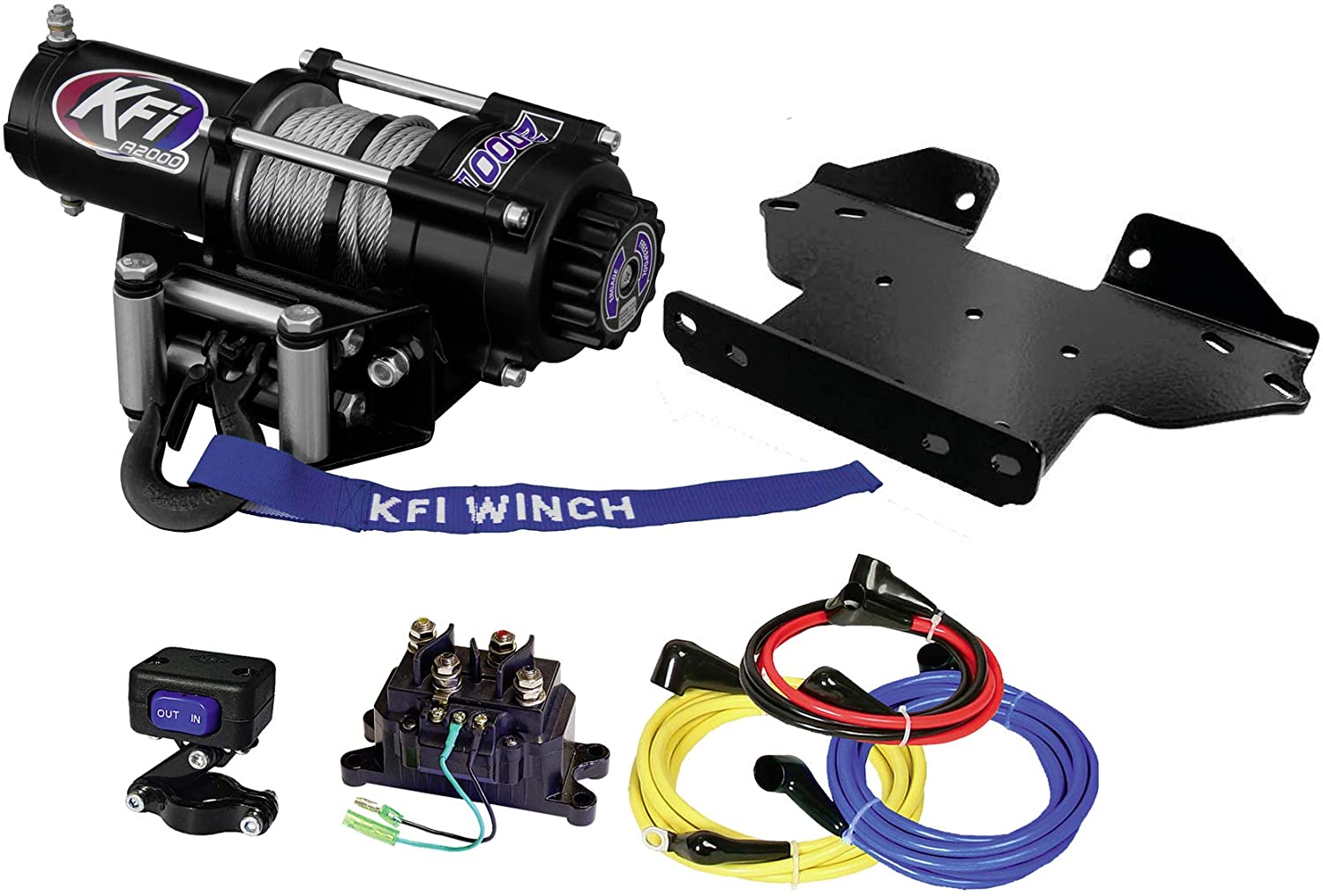

Winch Includes:
Take control of your winch with the included Mini-Rocker Switch. It comes with an adjustable bracket to mount on to your ATV's handlebars. This allows you to control your winch with just the touch of your finger, never having to let go of your handlebars.
The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.
A2000 Specifications | |
Model | A2000 ATV Series |
Rated Line Pull | 2000 lbs. |
Motor | 12V DC, 1.1 hp Permanent Magnet |
Gear Ratio | 171:1 |
Gear/Transmission | All-metal Planetary Gear Drive |
Brake | Dynamic and Mechanical |
Clutch (free spooling) | All Metal Cam Activated Freespool |
Drum Size | 1.5" (D) x 3.15" (L) |
Cable | 5/32" (D) x 49' (L) |
Fairlead | Multi-directional Roller |
Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch |
Winch Dimensions | 12.28" L x 4.2" D x 4.4" H |
Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
Recommended Battery | 12 Amp/hour minimum |
Warranty | Limited 1 Year |
Winch Weight | 24.8 lbs. (complete kit) |
