Brand New "KFI" Winch Mount for the following Suzuki ATV's:
- All 2007-2010 King Quad 450
- 2009 & 2011-2021King Quad 500 AXI
- All 2005-2007 King Quad 700
- All 2008-2021King Quad 750
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AS-50 (requires purchase of ATV-MR)
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
-
MASTER LOCK :1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND: 2-Hole Winches (Click Here for Details)
- BADLAND: Standard Winches (Click Here for Details)
- CHAMPION : 2-Hole Winches (Click Here for Details)
- CHAMPION : Standard Winches (Click Here for Details)
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
-
KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
SMITTYBILT :XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT :XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern.
-
Traveller:1078088/ 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
Winch Details:
Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 3000lb ATV Series winch features quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a "KFI 1-Year Limited Warranty". The KFI A3000 winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

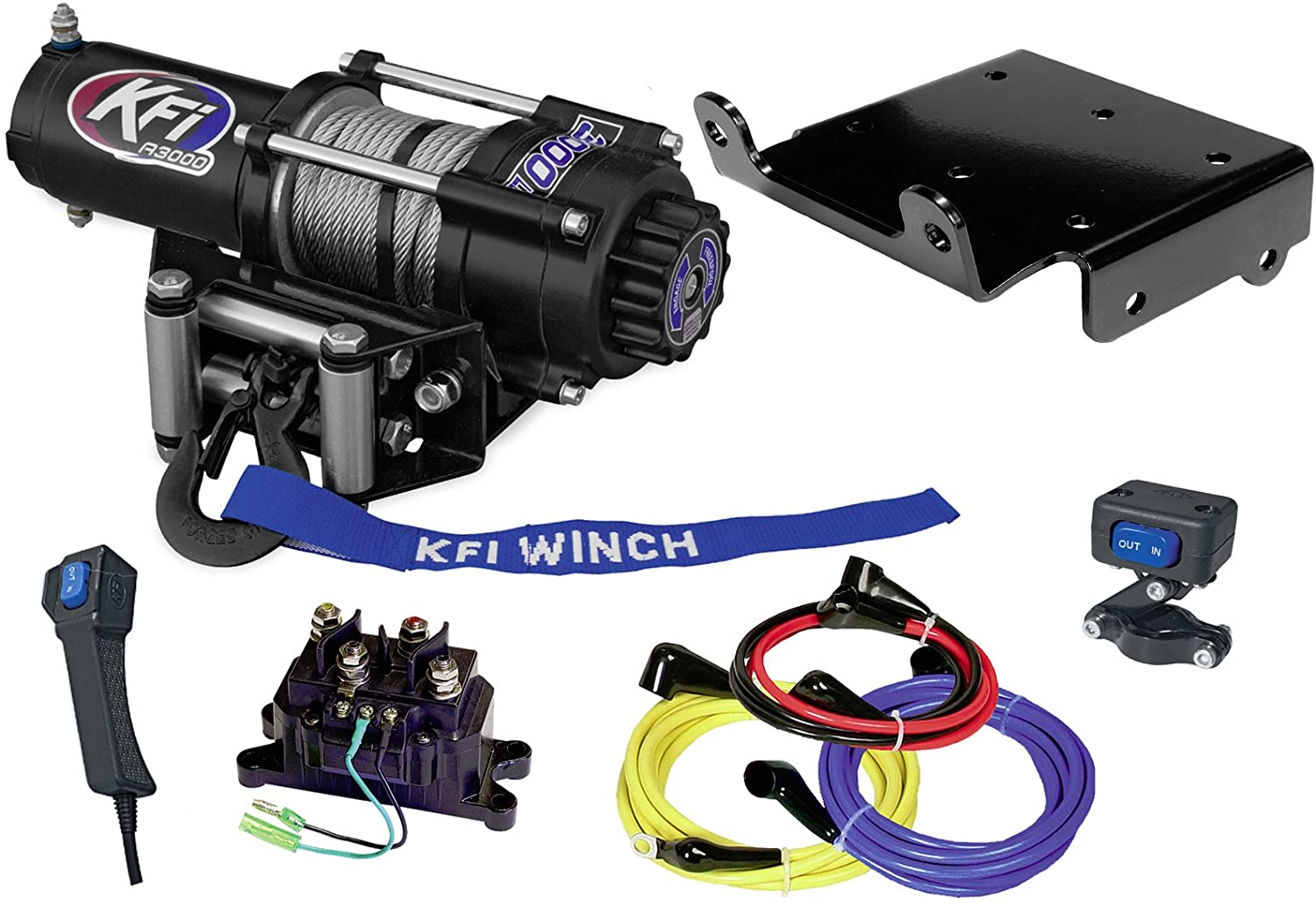

Winch Includes:
Take control of your winch with the included Mini-Rocker Switch. It comes with an adjustable bracket to mount on to your ATV's handlebars. This allows you to control your winch with just the touch of your finger, never having to let go of your handlebars.
Also included is a Handheld 14' CordedRemote for those situations when you need to control your winch from a distance ordismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring system so that you can store your remote when not in use.
The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.
A3000 Specifications | |
Model | A3000 ATV Series |
Rated Line Pull | 3000 lbs. |
Motor | 12V DC, 1.3 hp Permanent Magnet |
Gear Ratio | 171:1 |
Gear/Transmission | All-metal Planetary Gear Drive |
Brake | Dynamic and Mechanical |
Clutch (free spooling) | All Metal Cam Activated Freespool |
Drum Size | 1.5" (D) x 3.32" (L) |
Cable | 3/16" (D) x 45.9' (L) |
Fairlead | Multi-directional Roller |
Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch |
Winch Dimensions | 13.39" L x 4.06" D x 4.29" H |
Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
Recommended Battery | 12 Amp/hour minimum |
Warranty | Limited 1 Year |
Winch Weight | 24.8 lbs. (complete kit) |
