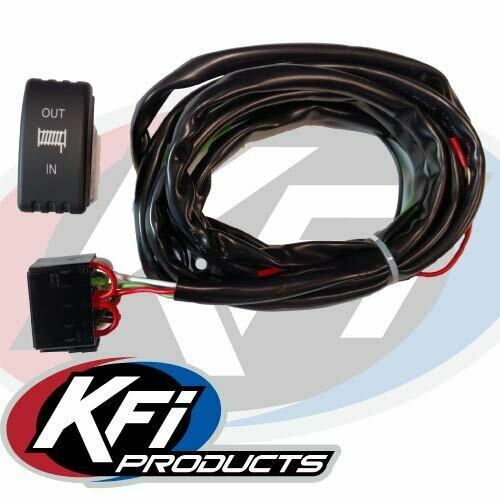

KFI Dash Rocker Switch Kit – Blue LED UTV Winch Control (UTV‑DRS‑K)

OVERVIEW

The KFI Dash Rocker Switch Kit delivers secure, dash-mounted winch control by combining a precision-cut (ON)-OFF-(ON) rocker switch with a straightforward wiring solution. Constructed with durable silver-plated terminals and integrated status indicators, this assembly enhances operational safety while mounting directly into standard UTV dash panels for clean functionality upgrades.

ENGINEERING & PERFORMANCE

The double-pole circuit architecture actively manages both battery legs during winch operation, ensuring complete power engagement and reliable disengagement when extracting equipment. Silver-plated electrical contacts minimize resistance, maintaining stable current flow even under high-load recovery scenarios or sustained trail use. The included 10-foot harness provides verified reach to route connections cleanly between the dash control and winch solenoid, eliminating splicing tools or custom fabrication steps.

KEY FEATURES

• (ON)-OFF-(ON) double-pole rocker switch for precise winch management
• 10-foot plug-and-play wiring harness included
• Silver-plated electrical terminals reduce resistance during high-current draws
• Blue LED illumination activates during key-on operation for immediate status tracking
• Supports dash panel thickness ranging from 0.030 inches to 0.250 inches
• Maintains standard UTV dash cutout dimensions of 0.830 inches x 1.450 inches
• Rated for 20 amps at 12VDC and 15 amps at 24VDC
• Compatible with most winches utilizing standard electrical contactors

TECHNICAL SPECIFICATIONS

• Brand: KFI
• Part Name: Dash Rocker Switch Kit – Blue LED UTV Winch Control
• Accessory Type: Switch / Wiring Kit
• Terminal Material: Silver-plated contacts
• Circuit Configuration: (ON)-OFF-(ON) / Double-pole
• Max Rating: 20A @ 12VDC; 15A @ 24VDC
• Wire Length: 10 feet
• Switch Illumination: Blue LED (Key-on operation)
• Mounting Cutout: 0.830" x 1.450"
• Panel Fit: 0.030"–0.250" thickness
• Winch Compatibility: Standard contactor-based systems

FITMENT

• Universal — fits most UTV and side-by-side applications as specified.

WHY RIDERS CHOOSE THIS

Riders install this KFI kit to establish a dependable manual interface that simplifies winch handling while protecting critical wiring integrity. The combination of a double-pole circuit and silver-plated contacts guarantees steady power delivery, extending component lifespan through repeated heavy pulling cycles. A pre-wired 10-foot harness enables rapid, tool-light installation across diverse UTV platforms without disrupting factory electrical layouts. Built-in status lighting and broad voltage ratings ensure operators maintain full traction control during technical off-road, trail, and utility work.
