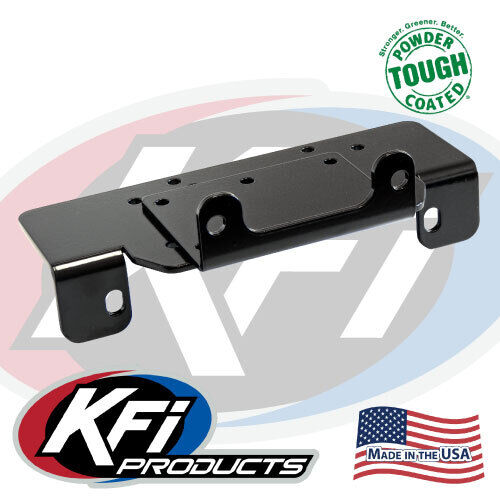

Brand New "KFI" Winch Mount for the following Kubota UTV's:
- 2007-2013 KUBOTA RTV1100
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- WARN: Vantage 4000lbs / Provantage 4500lbs
-
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- Requires Standard fairlead bracket #101715.
-
WARN: VRX 45 / VRX 45-S
- Requires Wide fairlead bracket #100695.
-
WARN: AXON 35 / AXON 35-S / AXON 45RC
- Requires Standard fairlead bracket #101715.
-
WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
- Requires Wide fairlead bracket #100695.
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / LT2000 / UT3000
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
-
MASTER LOCK: 1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
-
BADLAND 2-Hole Winches: 68146 / 61258 / 61297 / 61840
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- BADLAND Standard Winches: 68145 / 61604 / 61257 / 61383
- BADLAND WIDE Winches: 61384 / 68144 / 61605
-
CHAMPION 2-Hole Winches: 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
CHAMPION Standard Winches: 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CHAMPION WIDE Winches: 14008 / 14501 / 14551 / 14552 / 40252
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
-
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT: XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up
- All with 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
-
Traveller: 1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed#ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Specifications:
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Includes standard roller fairlead bracket.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Roller fairlead and winch not included.
