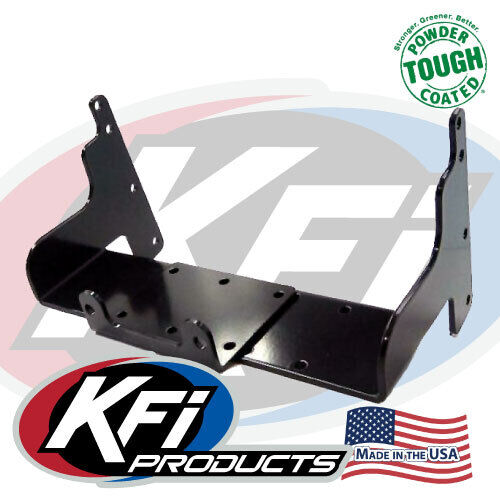

Brand New "KFI" Winch Mount for the following Polaris ATV's:
- See Generation 4 List Below
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: U45-R2 / SE45-R2
- KFI: AS-50 (requires purchase of ATV-MR)
-
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- Requires Roller Fairlead Bracket #101715
-
WARN: AXON 35 / AXON 35-S / AXON 45RC
- Requires Roller Fairlead Bracket #101715
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH:Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR)
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
-
MASTER LOCK: 1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Requires rrilling Two 3/8" holes in plate to fit this winch.
- CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND: 2-Hole Winches : 68146 / 61258 / 61297 / 61840
- BADLAND: Standard Winches
- CHAMPION: 2-Hole Winches : 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
- CHAMPION: Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335 / C10014 / 13060 / 13501
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
-
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT: XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
-
Traveller: 1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Does NOT work with Polaris OEM Brush Guard or Double Tube Bumper.
- Works with the new OEM Deluxe Brushguard #2874785-067.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
GENERATION 4 CHASSIS
-
1995 Model Year- Xplorer 400 4x4
-
1996 Model Year- Sportsman 500 4x4- Xplorer 300 4x4- Xplorer 400 4x4
-
1997 Model Year- Sportsman 500 4x4- Xplorer 300 4x4- Xplorer 400 4x4- Xplorer 500 4x4- Xpress 400 4x4
-
1998 Model Year- Sportsman 500 4x4- Sportsman 335 4x4- Xplorer 300 4x4- Xplorer 400 4x4- Diesel 4x4
-
1999 Model Year- Sportsman 500 4x4- Sportsman 335 4x4- Sportsman 500 6x6- Xplorer 300 4x4- Xplorer 400 4x4- Magnum 500 4x4- Diesel 4x4
-
2000 Model Year- Sportsman 500 4x4- Sportsman 500 Remington SE 4x4- Sportsman 335 4x4- Sportsman 500 6x6- Magnum 500 4x4- Magnum 325 4x4- Xpedition 325 4x4- Xpedition 425 4x4- Xplorer 400 4x4- Xplorer 400 2x4- Diesel 4x4
-
2001 Model Year- Sportsman 500 4x4- Sportsman 500 H.O. 4x4- Sportsman 500 H.O. Ducks Unlimited SE 4x4- Sportsman 500 H.O. Remington SE 4x4- Sportsman 400 4x4- Sportsman 500 6x6- Magnum 325 4x4- Magnum 500 4x4- Xpedition 325 4x4- Xpedition 425 4x4- Xplorer 400 4x4- Xplorer 400 2x4- Diesel 4x4
-
2002 Model Year- Sportsman 500 H.O. 4x4- Sportsman 500 H.O. Ducks Unlimited SE 4x4- Sportsman 500 H.O. Remington SE 4x4- Sportsman 400 4x4- Sportsman 500 6x6- Magnum 500 4x4- Magnum 500 RMK 2x4- Magnum 325 4x4- Xpedition 425 4x4- Xpedition 325 4x4- Xplorer 400 4x4- Xplorer 400 2x4- Diesel 4x4- PVT 4x4- PVT 6x6
-
2003 Model Year- Sportsman 500 H.O. 4x4- Sportsman 500 H.O. Mossy Oak 4x4- Sportsman 400 4x4- Sportsman 500 6x6- Magnum 330 4x4- Magnum 330 4x4 Mossy Oak- Xpedition 425 4x4- PVT 4x4- PVT 6x6
-
2004 Model Year- Sportsman 500 6x6- Magnum 330 4x4- ATP 500 H.O.- ATP 330
-
2005 Model Year- Sportsman 500 6x6- Magnum 330 4x4- ATP 500 H.O.- ATP 330
-
2006 Model Year- Sportsman 500 6x6- Magnum 330 4x4
-
2007-2008 Model Year- Sportsman 500 6x6
