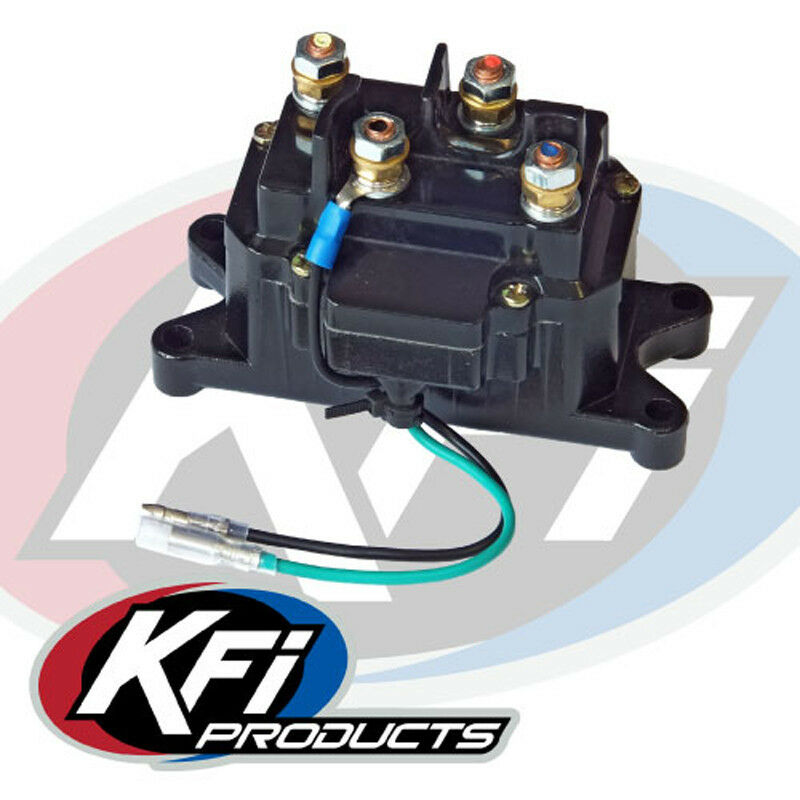

Product Code: ATV-CONT
Manufacturer: KFI Products
Direct Replacement Contactor for the following KFI winches:
KFI:ST17 / A2000 / A2500-R2 / A3000 / U4500 / U45-R2 / U4500w / U45w-R2 / SE25 / SE35 / SE45 / SE45-R2 / SE45w / SE45w-R2
Requires correct rocker switch to operate contactor
Rocker switch requires switch with three wires, two wires to contactor and one to keyed power. See chart below.
KFI Wiring Diagram Example:
Replacement Contactor will Also work with the following winches:
NOTE:The wiring and connections may be a little different between brands.
- KFI:AS-50 / AS-50w
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:RT40 / XT40
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- WARN:Vantage 4000lbs / Provantage 4500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK :1500lbs #2955AT
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND :2000lb #68146
- BADLAND :3000lb #68145 / 5000lb #68144
- CHAMPION :C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 13501 / 14061
- CHAMPION :14501 / 14551 / 14552 / 40252
- CHAMPION :10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145
- CHAMPION:14001 and 14061
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER :KT2000
- SMITTYBILT :XRC 2.0
- SMITTYBILT :XRC 3.0
- XGEAR: X3000 / X4000
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- Possibly many others ATV / UTV Winches, call to confirm.
