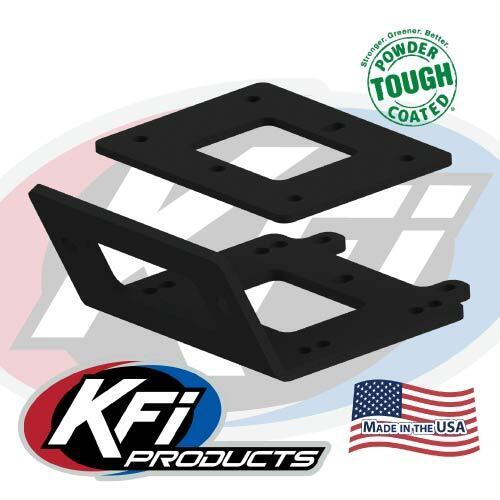

Brand New "KFI" Winch Mount for the following Yamaha ATV's:
| YAMAHA | Year |
| Kodiak 450 | '18-24 |
Replaced #101475 for 2018-2019
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50 (Requires purchase of ATV-MR)
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- SUPERWINCH: LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
-
MASTER LOCK: 1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY: Work Power 1500 and 2500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- CHAMPION: 2-Hole Winches
- CHAMPION: Standard Winches
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
-
KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
-
SMITTYBILT: XRC 3.0
-
-
- 4-Hole Standard (3.00" x 4.875" bolt pattern
-
VENOM: 2500 / 3000 / 3500 / 4000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern
-
Traveller: 1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
Specifications:
- 100% MADE IN USA
- Constructed of 3/16" steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- All mounting hardware included
- Roller fairlead and winch not included.
-
