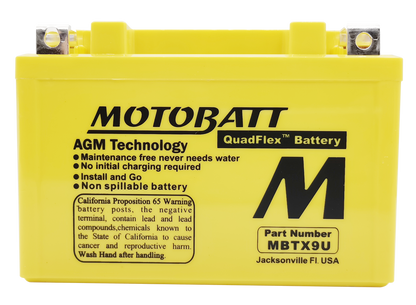

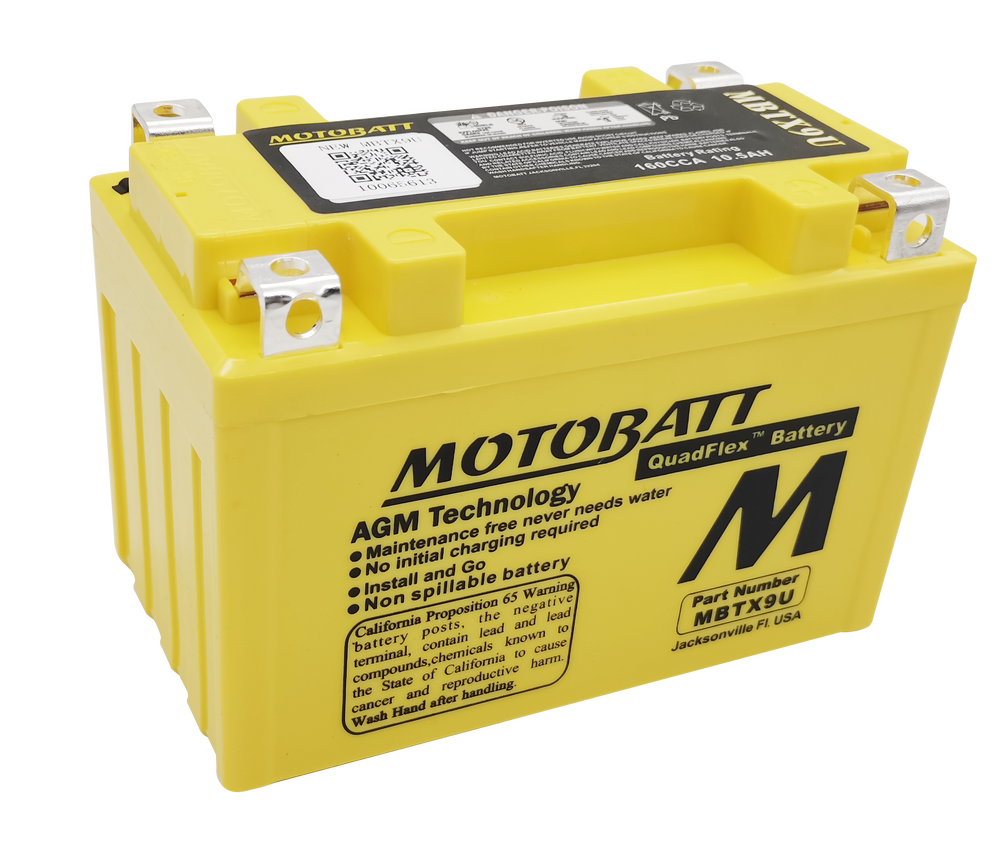

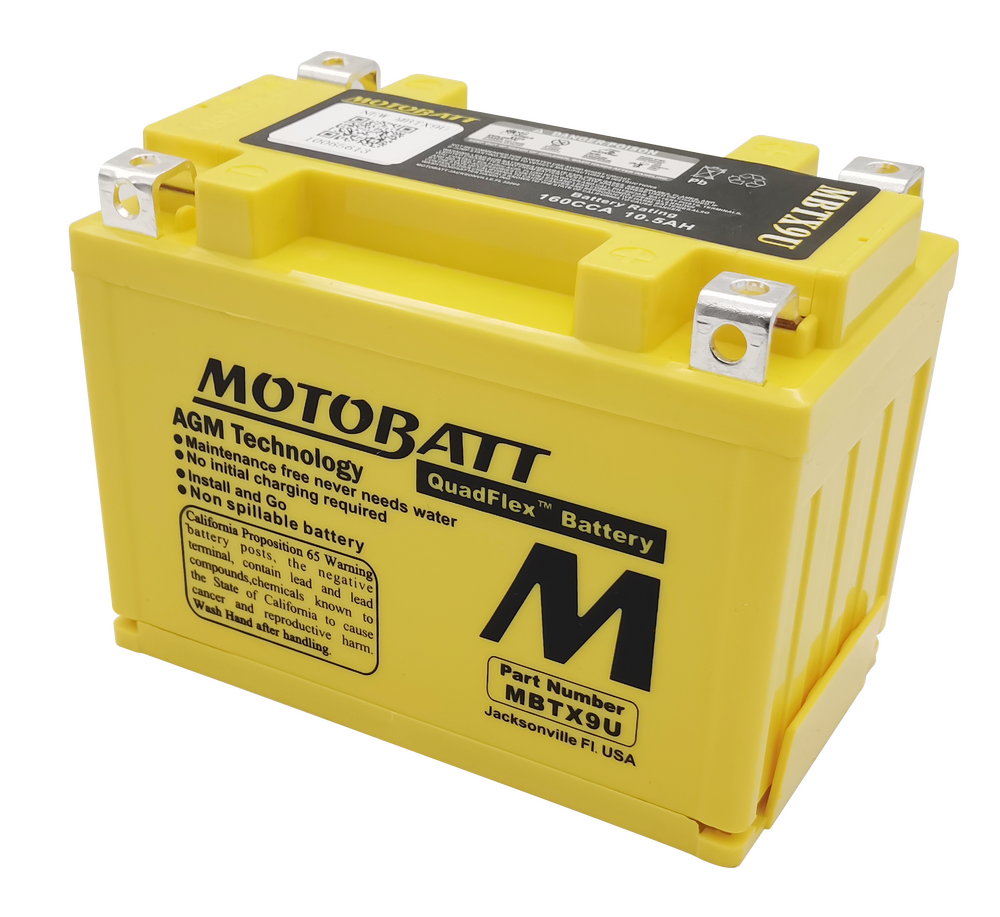

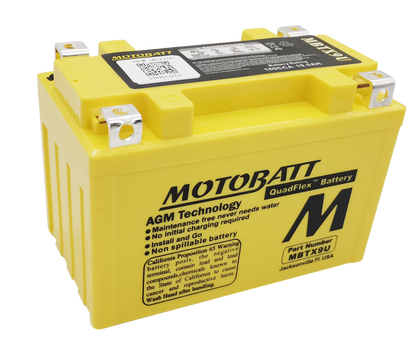

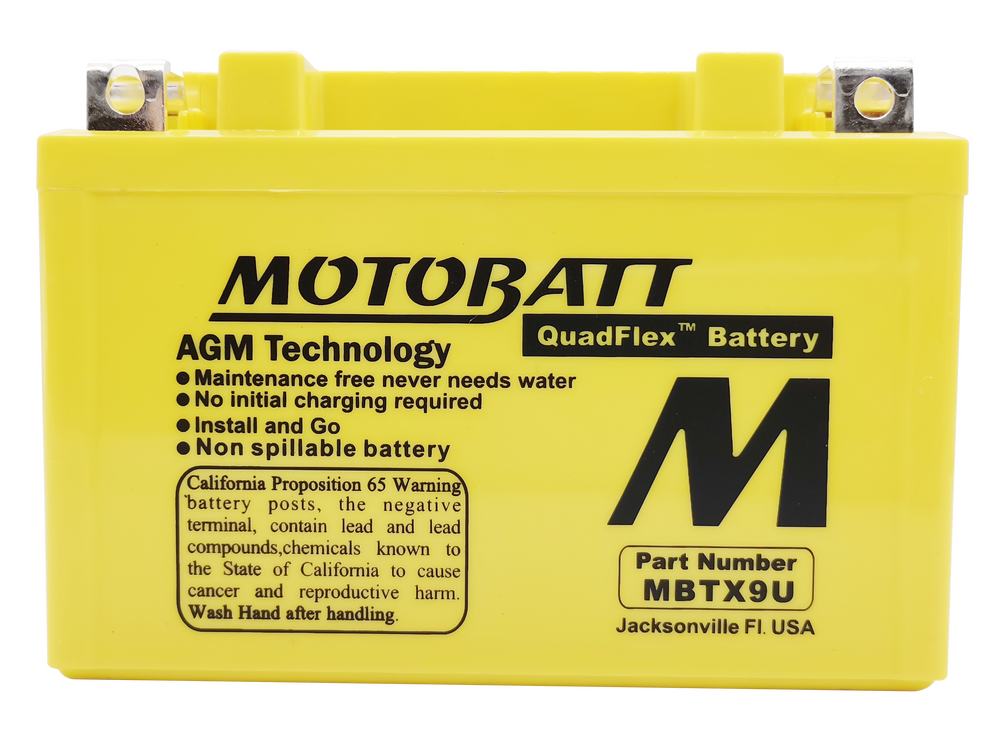

Motobatt Battery MBTX9U Sealed Factory‑Activated Replaces: YT12A‑BS, YTR9‑BS, YTX9, YTX9‑BS, YTZ12S, YTZ14S

OVERVIEW

The MotoBatt MBTX9U is a sealed, factory-activated AGM power sports battery designed to deliver reliable starting power across motorcycle, ATV, UTV, and kart platforms. Built with high-density Absorbent Glass Mat chemistry and housed in a compact group-size frame, this direct replacement eliminates guesswork for mechanics working on high-compression parallel twins, sport bikes, dual-sport platforms, and touring chassis. Its standardized footprint consolidates four distinct OEM battery designs into a single field-ready component.

ENGINEERING & PERFORMANCE

This sealed AGM unit provides stable cranking current and consistent voltage output under heavy electrical load without requiring periodic water top-offs or vent hose installation. The advanced electrolyte retention matrix resists internal shorting during aggressive off-road use while the rigid, fully enclosed casing prevents leakage during transport or long-term storage. Engineered with a vibration-damping core and a standardized compact design, the battery plugs directly into legacy and modern chassis architectures originally specified with flooded lead-acid units.

KEY FEATURES

• Sealed AGM chemistry for spill-proof operation and superior charge retention
• Factory-activated with 12-volt nominal voltage, 160 CCA rating, and 10.5 Ah capacity
• QuadFlex base with four independent terminal positions and included spacer for adjustable polarity
• Maintenance-free sealed design eliminating water refills and traditional venting requirements
• High-density plate assembly engineered for extreme vibration resistance and shock tolerance
• Direct replacement for YT12A‑BS, YTR9‑BS, YTX9, YTX9‑BS, YTZ12S, and YTZ14S applications
• Compact physical footprint measuring 5.94” x 3.42” x 4.13”–4.33” (151 x 87 x 105–110 mm)
• Ready for instant installation out of the box with no initial charging cycle required

TECHNICAL SPECIFICATIONS

• Brand: MotoBatt
• Part Name: MBTX9U Sealed AGM Power Sports Battery
• Component Type: Battery
• Material: AGM (Absorbent Glass Mat)
• Supported Years: 1986–2009 (varies by manufacturer model)
• Compatible Trims: Electric start motorcycles, sport bikes, cruisers, dual-sport platforms, ATVs, UTVs, and go-karts matching OEM YTX/YTZ form factors

FITMENT

• Arctic Cat DVX400 (All Years)
• Honda Vigor650 (All Years)
• Honda Shadow VT600C, CD Deluxe, VLX (1988–2006)
• Honda CBR600 (1987–2000)
• Honda CBR900R, RR (1993–1999)
• Honda VFR800 Interceptor, ABS (2002–2009)
• Polaris Outlaw 450 (2007–2009)
• Suzuki Burgman AN400 (2003–2009)
• Suzuki DR650SE (1996–2009)
• Yamaha VMAX (2009)

WHY RIDERS CHOOSE THIS

Riders choose the MBTX9U because its QuadFlex terminal architecture removes installation friction caused by rigid post orientation and bracket clearance limitations. The 160 CCA output paired with 10.5 Ah capacity ensures rapid engine turnover on air-cooled V-twins, liquid-cooled inline-fours, and high-compression street bikes where consistent current delivery dictates reliability. Factory-activated AGM chemistry guarantees immediate usability while eliminating the maintenance liabilities and electrolyte degradation associated with flooded lead-acid alternatives. With engineered vibration damping and a completely sealed casing, this battery withstands repeated mechanical stress during off-road competition, highway touring, and daily commuter duty without risking chemical exposure or premature failure.
